Digital LCD Name Tag for wine glass
in3D Modeling Designheld byArel salachLast seen:
Contest Closed
-
Open
-
Choosing Finalist
-
Ended
Description:
We are developing a digital “Name Tag” (LCD screen) for wine glasses that will communicate with a mobile app. so people will be able to communicate with the tag via their smartphone and find their glass in case they can’t tell which wine glass is theirs...etc.We are looking for few design concept options for a prototype 3D design that we will print.
Wants:
This is what are basically looking for:The tag will need to be easily connected to the wine glass’s poll with some kind of a an easy on/off rubber clip solution so it is very easy to clip it on to the wine glass and take it off when needed (see Fig. A). See also Fig. B, Fig. C and Fig. D to better understand where is the area that the digital name tag need to be positioned on the wine glass.
Very high class fancy, futuristic and elegant design, almost like a jewelry. See for example all the recent smart watches out there such as the new Moto 360 (moto360.motorola.com/)or LG G Watch (www.lg.com/global/gwatch)etc…
You can offer different sizes and shapes (rectangle, oval...etc) for the tag, but the basic size is around ⅛”-¼” High, 2,0” Long, 1.0” Wide
Device will be charged via wireless charger or will have a water resistant plug cup, so you can add a mini usb charger socket with a water resistant plug cup in the design.
On/Off button
Please show in the design a name (“John” for example) on the digital tag LCD display.
If at all possible please also show the digital tag as if attached to a wine glass.
我们将最有可能选择3 - 5为o设计概念ur project.
Software:
- Any software you use
Entries

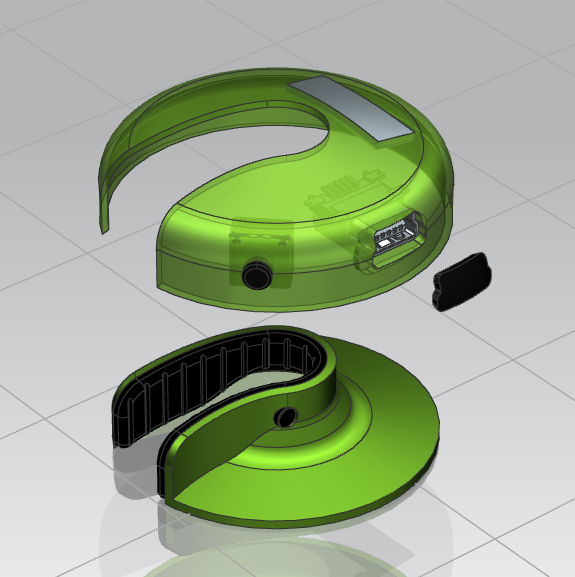

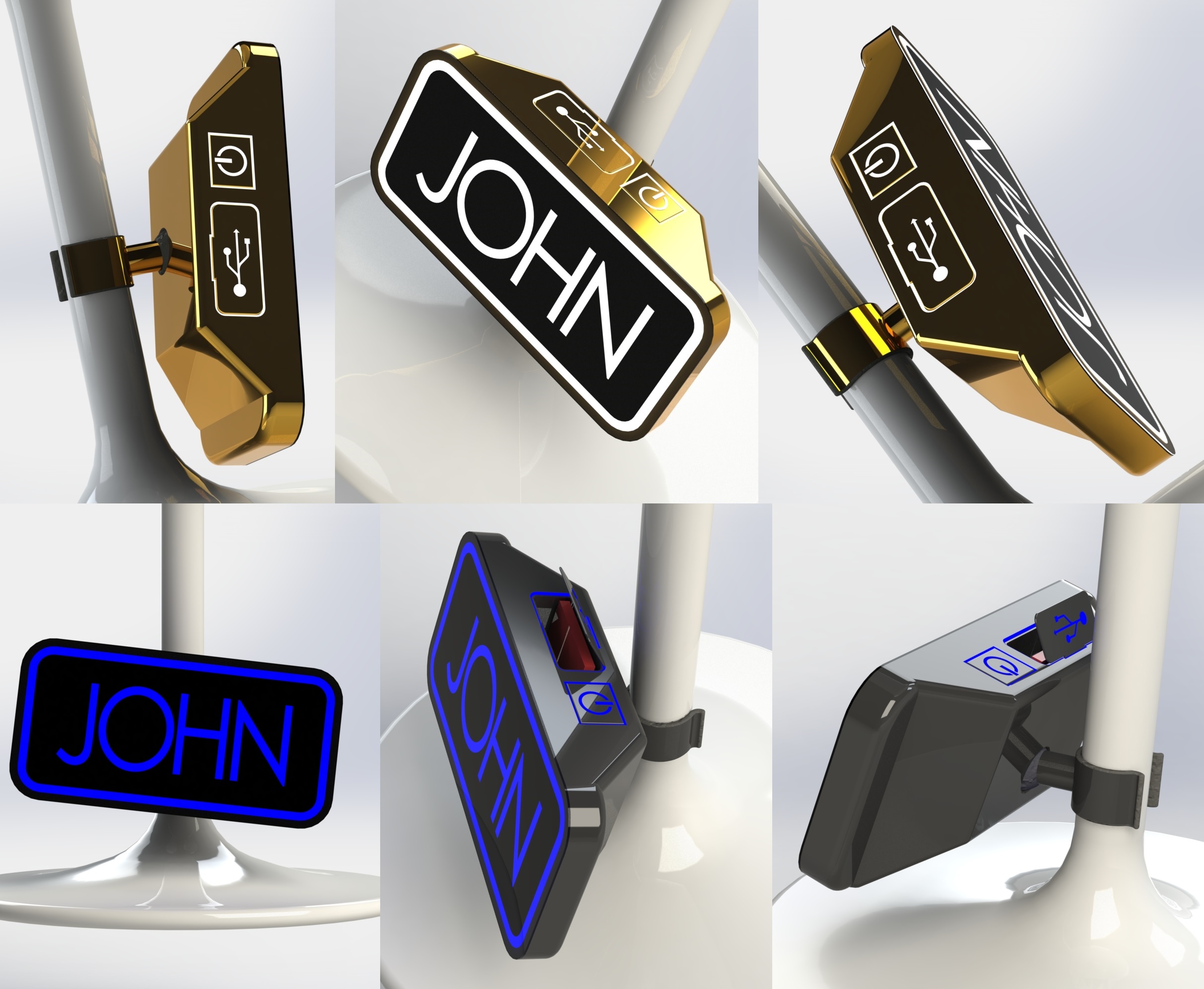

#20LCD Name tag for wine glassbyAZ Jiang
Download Files

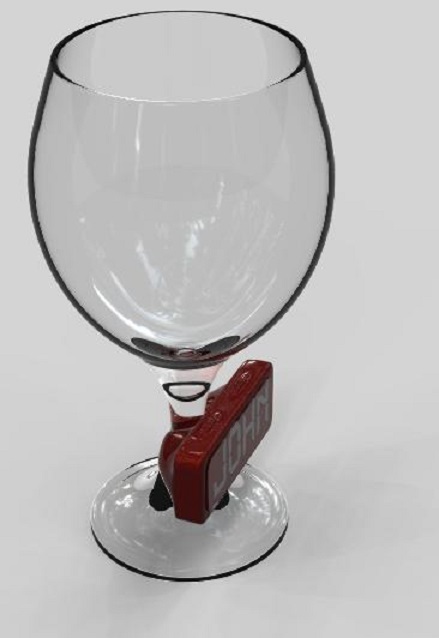

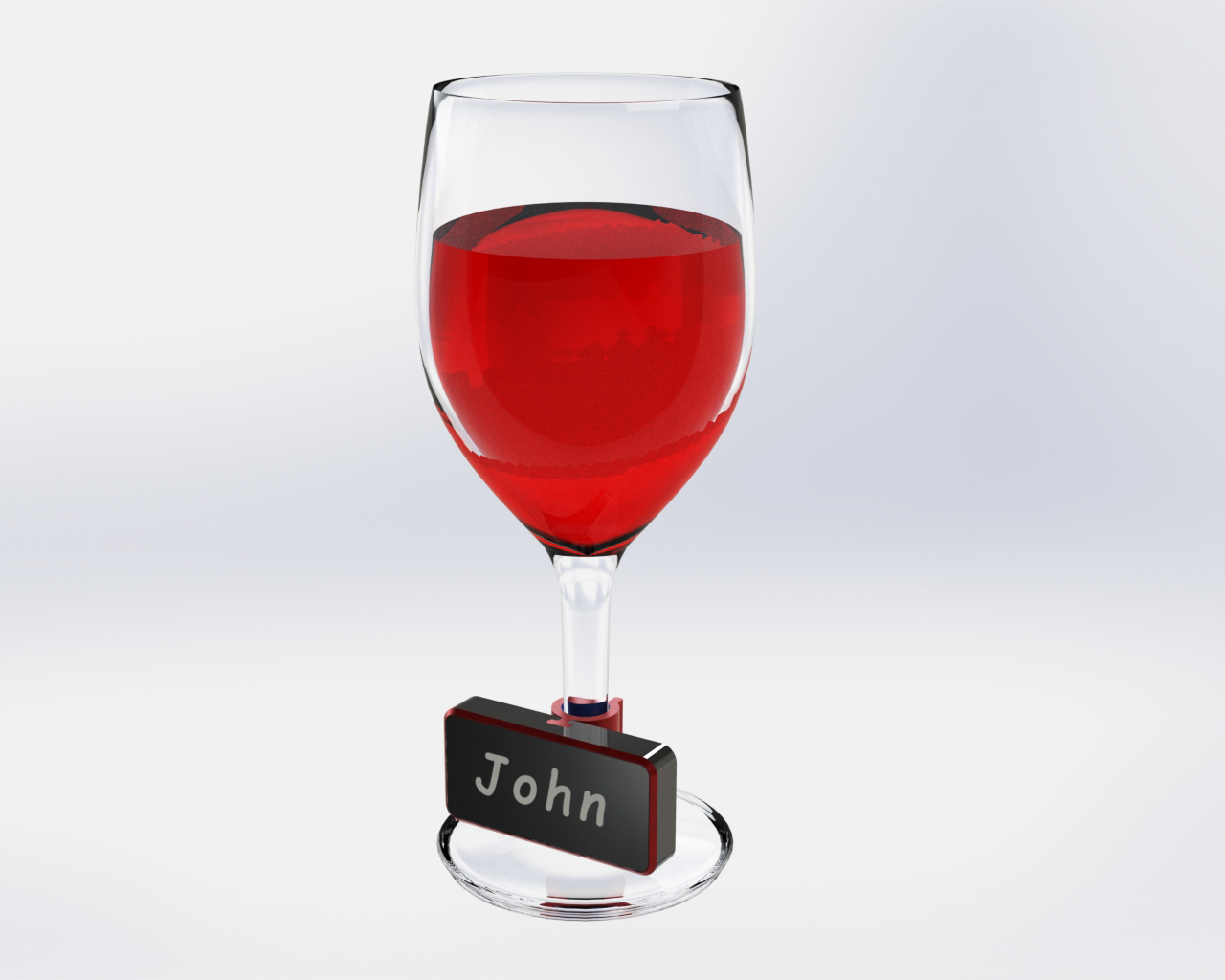

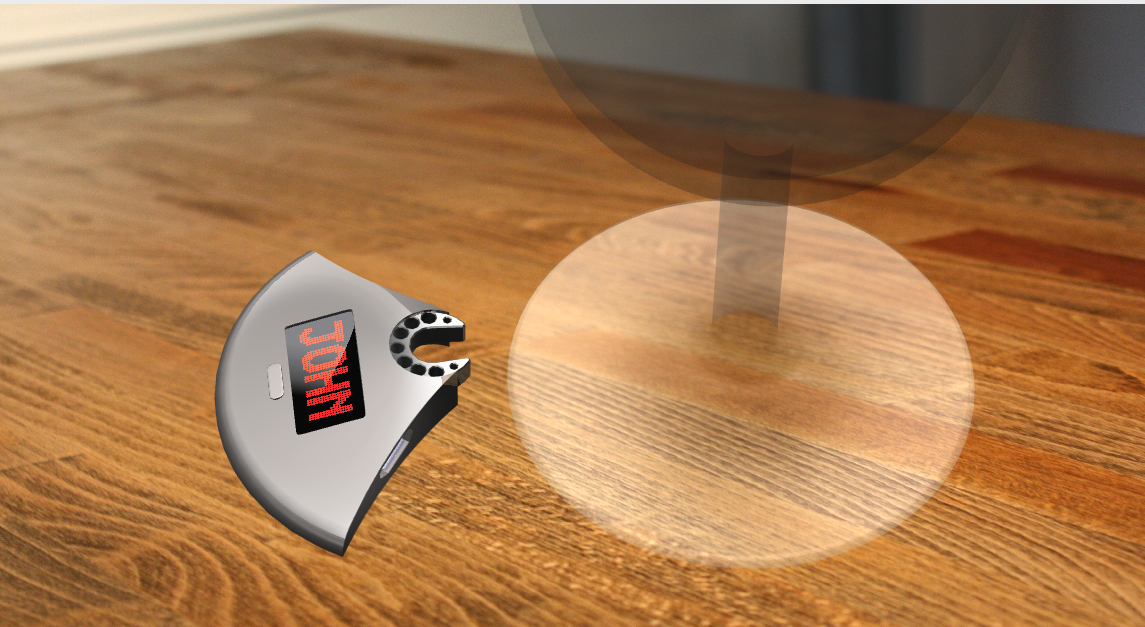

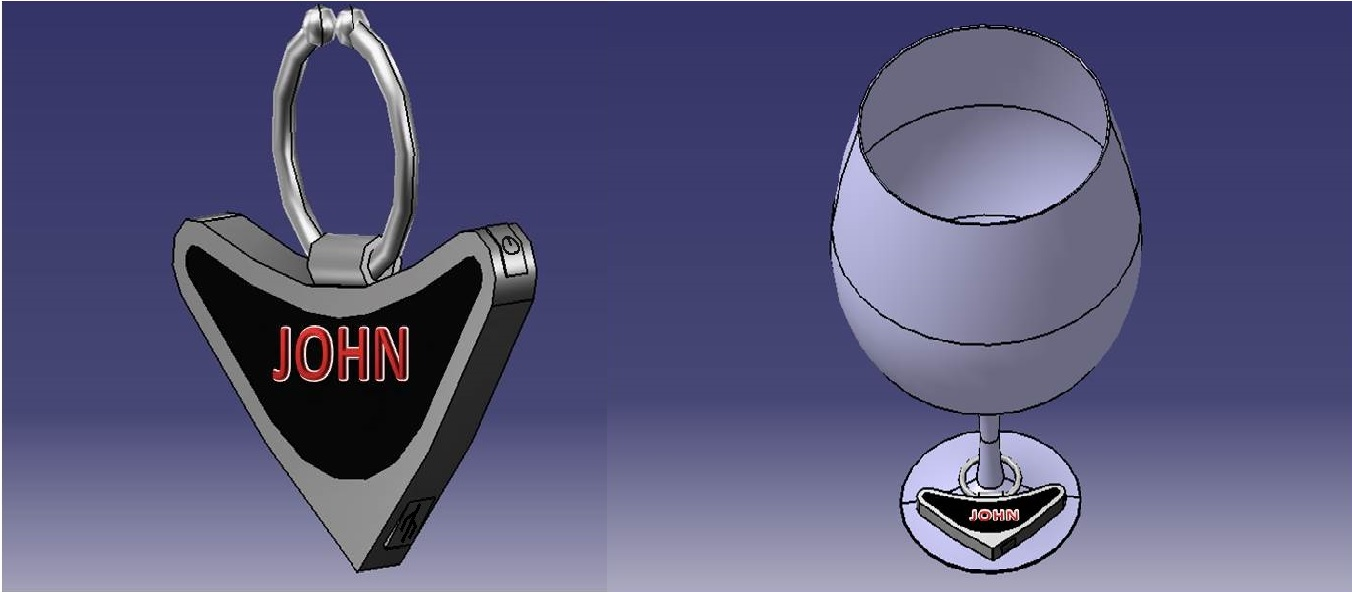

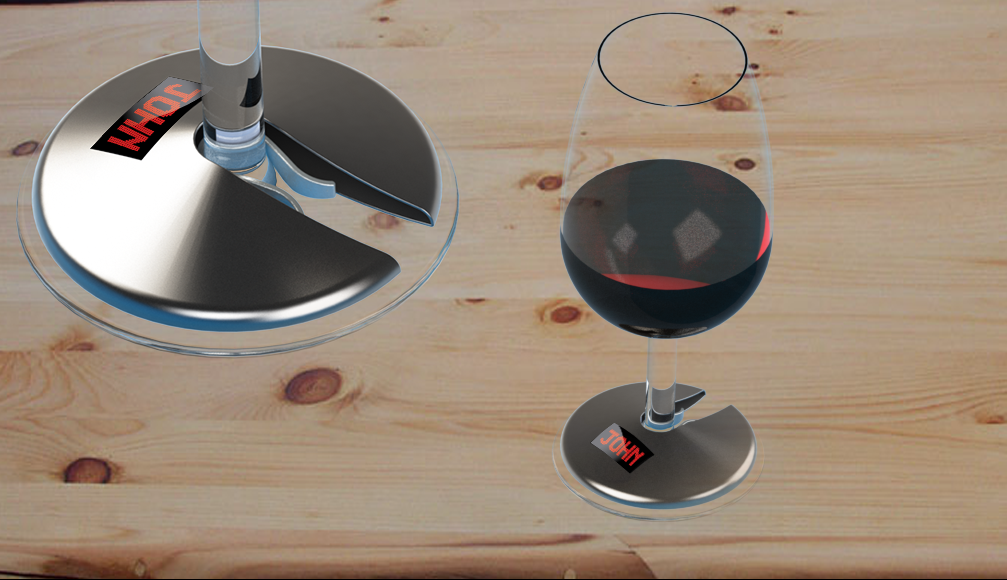

- SolidWorks 2011 — Name Tag for Wine glass 15
- SolidWorks 2011 — Name Tag for Wine glass 19
- SolidWorks 2011 — Name Tag for Wine glass 14
- SolidWorks 2011 — Name Tag for Wine glass 24
- SolidWorks 2011 — Name Tag for Wine glass 23
- SolidWorks 2011 — Name Tag for Wine glass 21
- SolidWorks 2011 — Name Tag for Wine glass 20
- SolidWorks 2011 — Name Tag for Wine glass 17A
- SolidWorks 2011 — Name Tag for Wine glass 22
Apr 28, 2014 2:53
#14LCD Name tag for wine glassbyAZ Jiang
Download Files

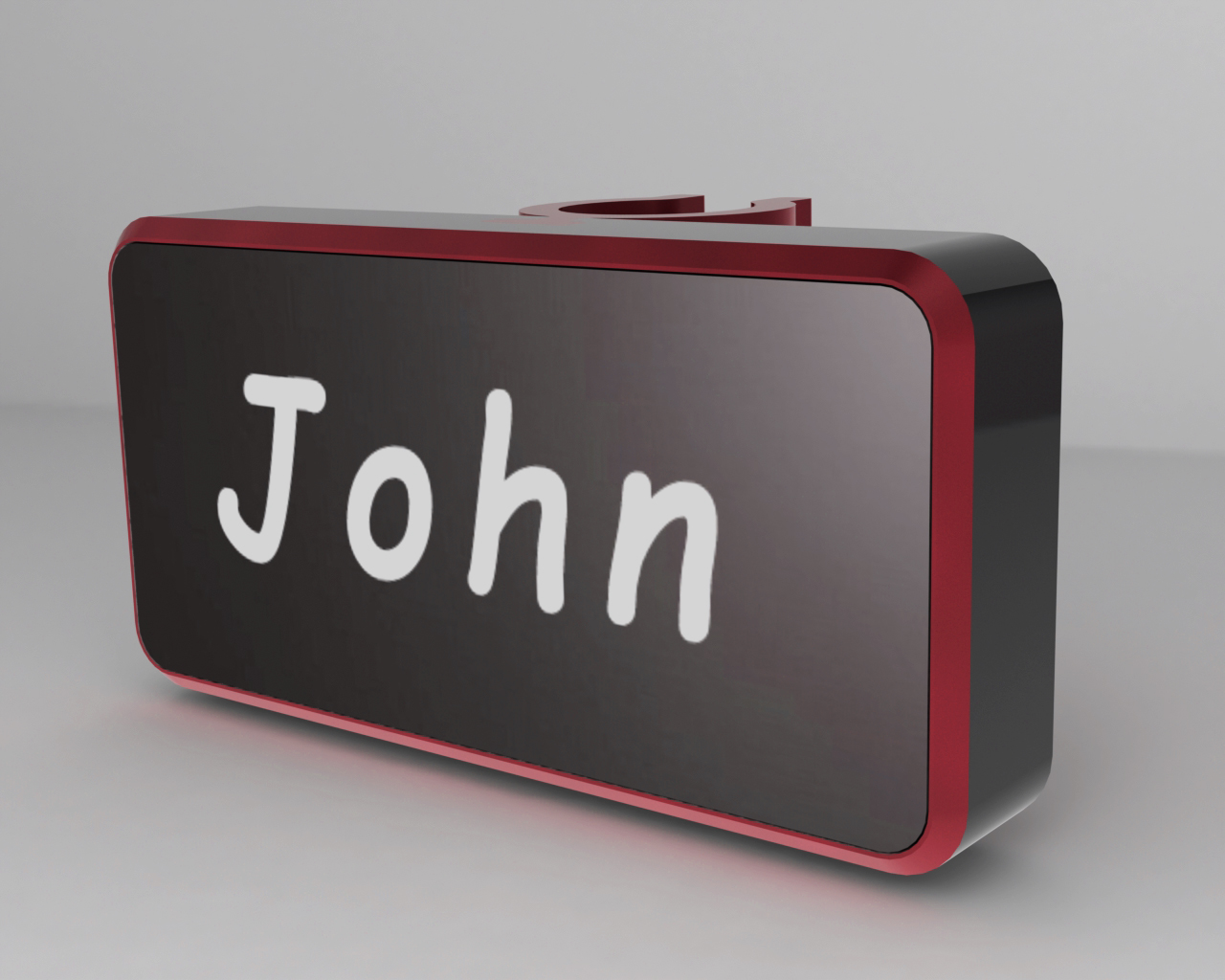

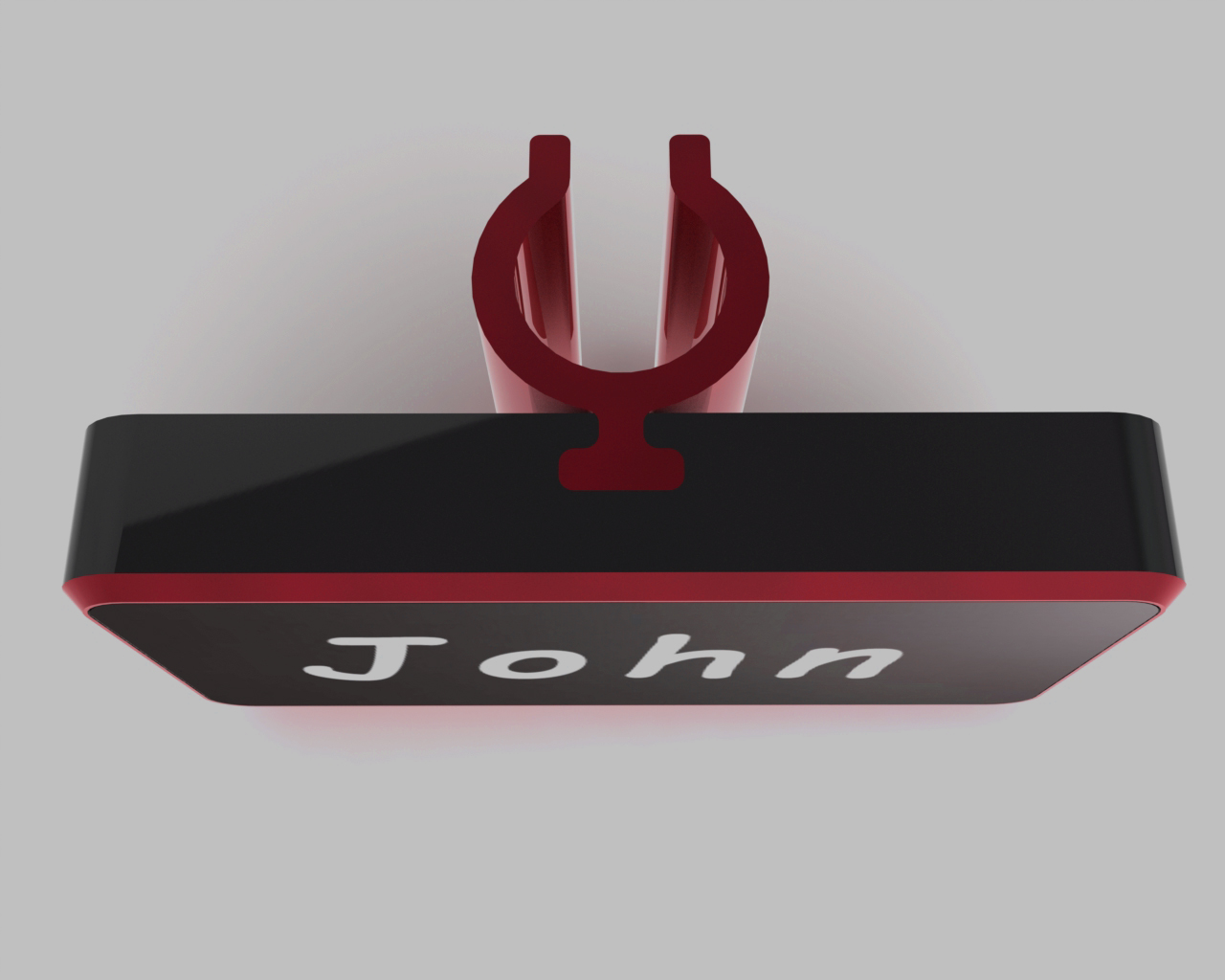

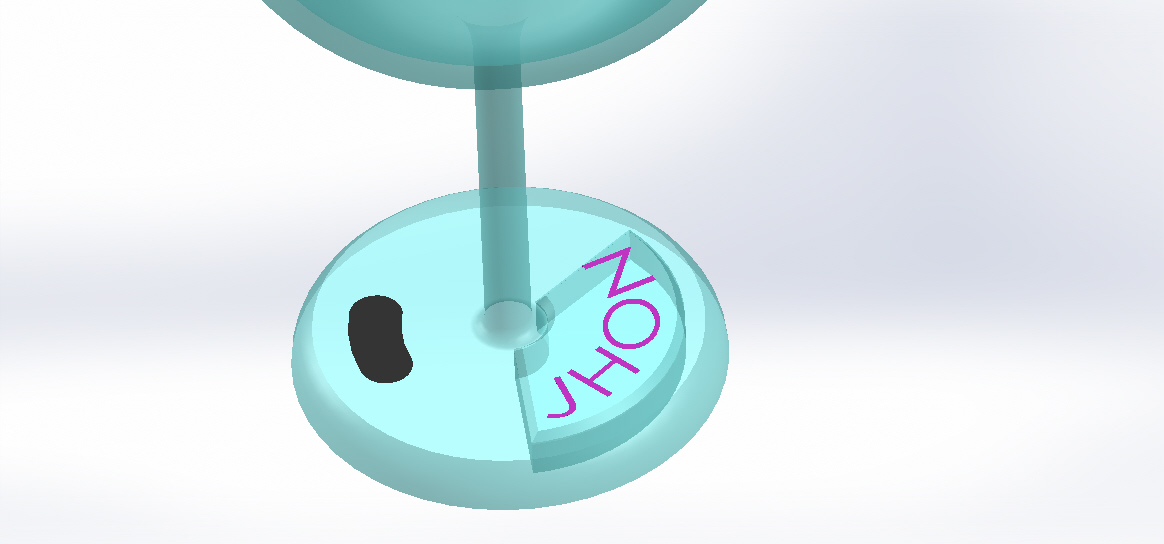

- SolidWorks 2011 — Name Tag for Wine glass 7
- SolidWorks 2011 — Name Tag for Wine glass 13
- SolidWorks 2011 — Name Tag for Wine glass 12
- SolidWorks 2011 — Name Tag for Wine glass 11
- SolidWorks 2011 — Name Tag for Wine glass 10
- SolidWorks 2011 — Name Tag for Wine glass 8
- SolidWorks 2011 — Name Tag for Wine glass 5
- SolidWorks 2011 — Name Tag for Wine glass 6
- SolidWorks 2011 — Name Tag for Wine glass 9
Apr 25, 2014 4:27
Discussion
any update on the contest who won? :D
Designer
Yes...
Buyer
Not sure. Is this a digital tag with LCD display?
Designer
我提交了一份设计,但效果图没有turn out as I expected. Is the design that I submitted clear and within your requirements? Thank you...
Buyer
Every glass is different of course, that is why we'll need to have some kind of a rubber (or other flexible material) flexible clip, or any other solution to attached the tag to the wine glass.
Thank you.
Thank you.
Designer
hello, what is the diameter of the glass leg where the tag will attach?
Buyer
Don’t worry about the actual component for now, we only need a concept design idea you can come up with based on around ⅛”-¼” High, 2,0” Long, 1.0” Wide
Thank you.
Thank you.
Designer
can you mention what LCD display that you will use? i found this small one at Newhaven, but the measurement is little bit exceeding your values : http://www.newhavendisplay.com/nhd0108bzfsyybw33v3-p-5152.html
Buyer
Hi Selva,
Not to exceed this value if possible.
Not to exceed this value if possible.
Fri, 11 Apr 2014 06:18:14 +0000
hi Arel,
you have mentioned the basic size is around ⅛”-¼” High, 2,0” Long, 1.0” Wide that means should not exceed this value or is the minimum value.
you have mentioned the basic size is around ⅛”-¼” High, 2,0” Long, 1.0” Wide that means should not exceed this value or is the minimum value.
Buyer
Yes it is.
Designer
it's a rigid LCD display, isn't it?
