wallet clip for keys/key fob/cash&CC/ headphones
inProduct Designheld byJames SLast seen:
Contest Ended, Winner(s) have been selected.
-
Open
-
Choosing Finalist
-
Ended
Description:

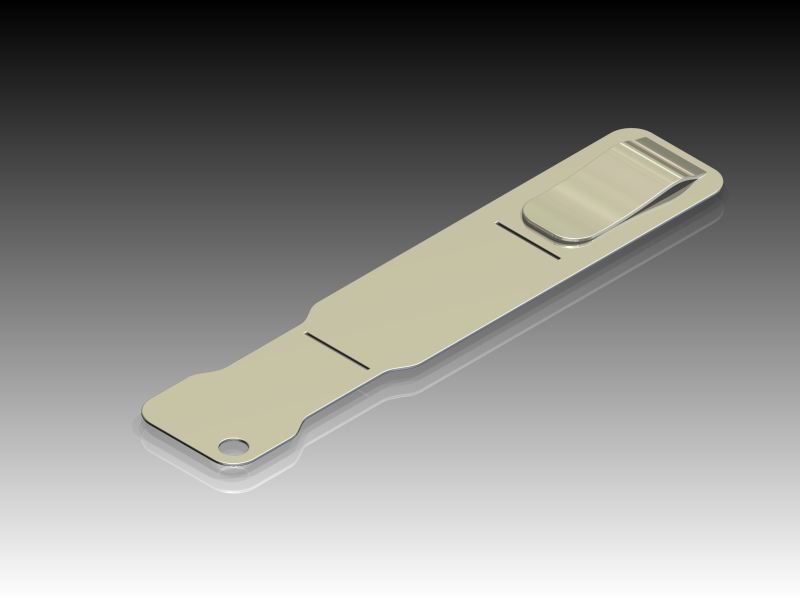

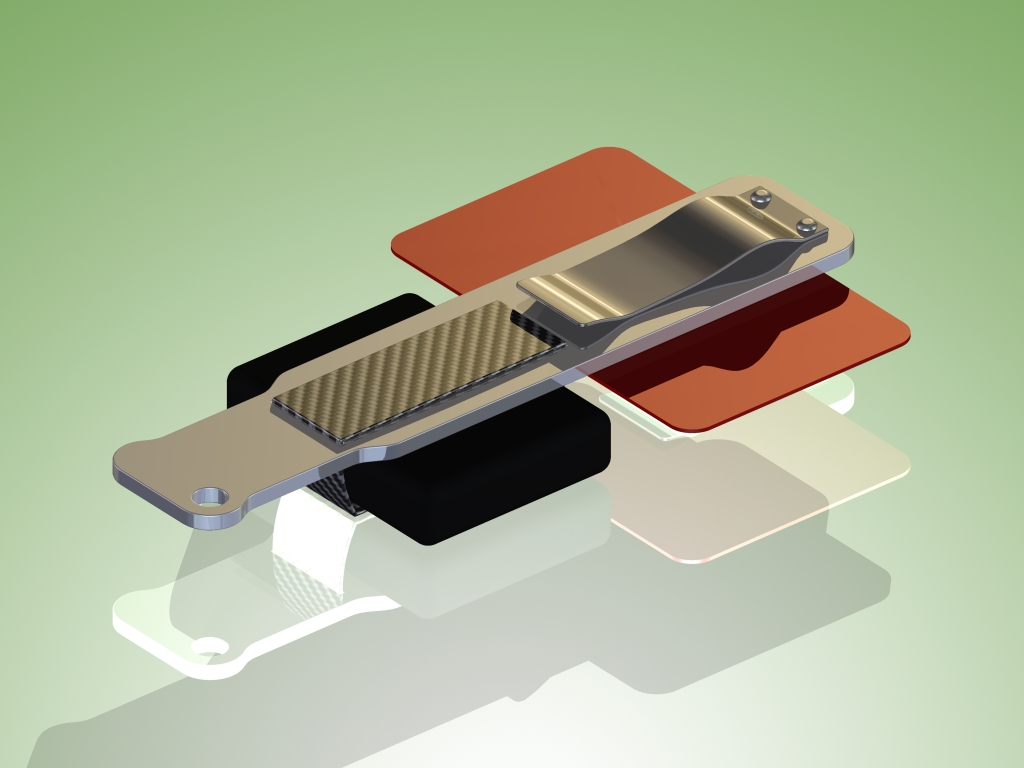

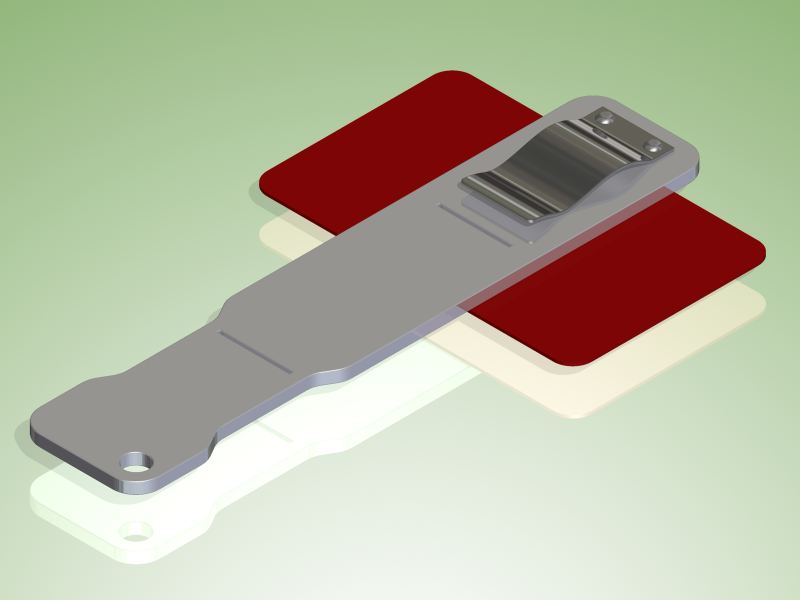

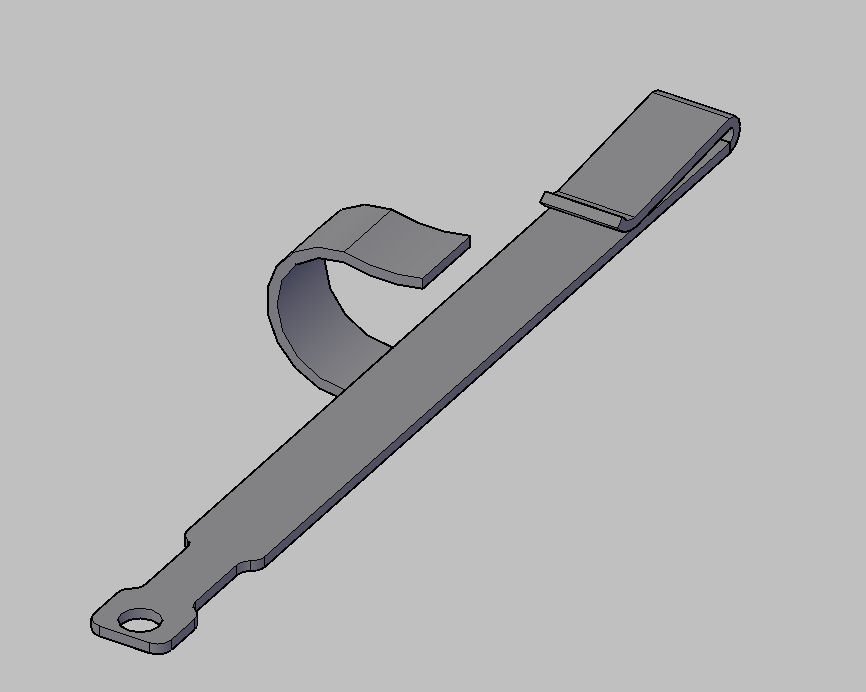

As seen in the sketchup images, this rectangular clip functions as a wallet and clips onto the opening of a front pants pocket (an example is shown in photo's). I need YOUR help in finding an ergonomic & functional solution to securing a car key FOB to the clip as well as sourcing pro CAD files that can be sent to a CNC machining facility.
Wants:
The entire length should be between 6" & 6.5" inches in length (no longer in order to accommodate average pocket depth). 1/2" wide and approximately 1/32" deep.hoping for creative liberty in designing a securing mechanism for the key fob (maybe a spring loaded clip etc) as well as creating a design that accommodates securing and carrying the stated contents while maintaining the dimension specifications.
Don't Wants:
完全重新设计的I have created via google sketchup. functional and creative solutions to securing the stated contents of what the wallet/clip holds are the goal.
Software:
- AutoCAD
Additional Information
pro-engineer / solidworks
Entries
1st Winner

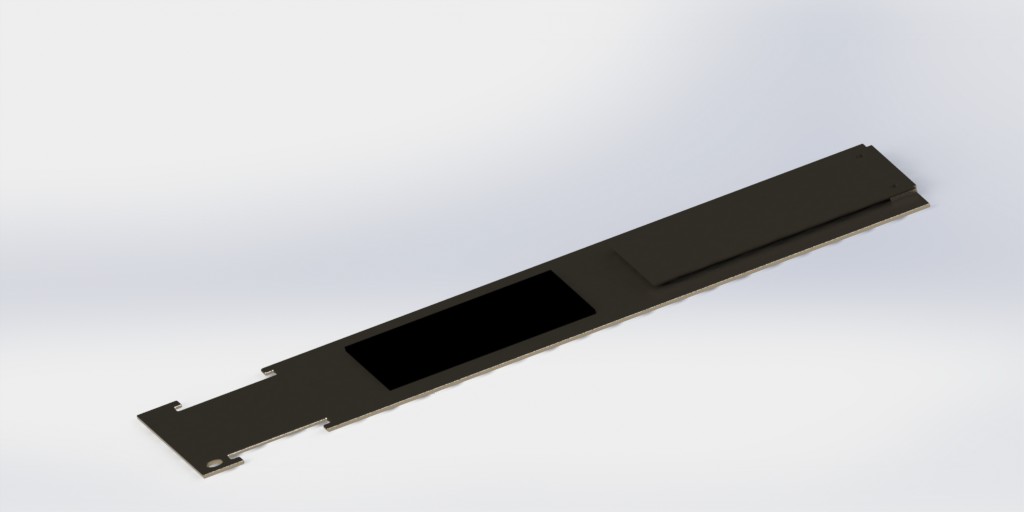

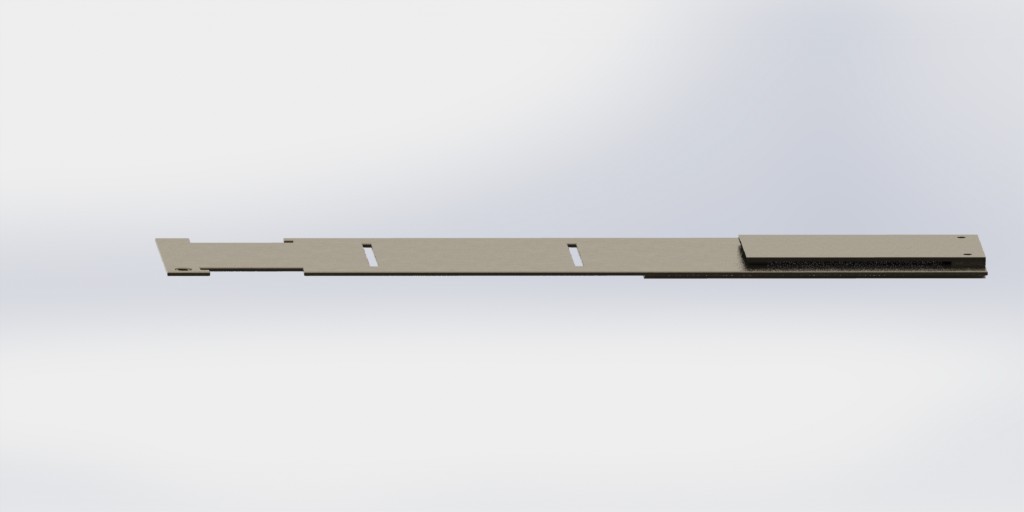

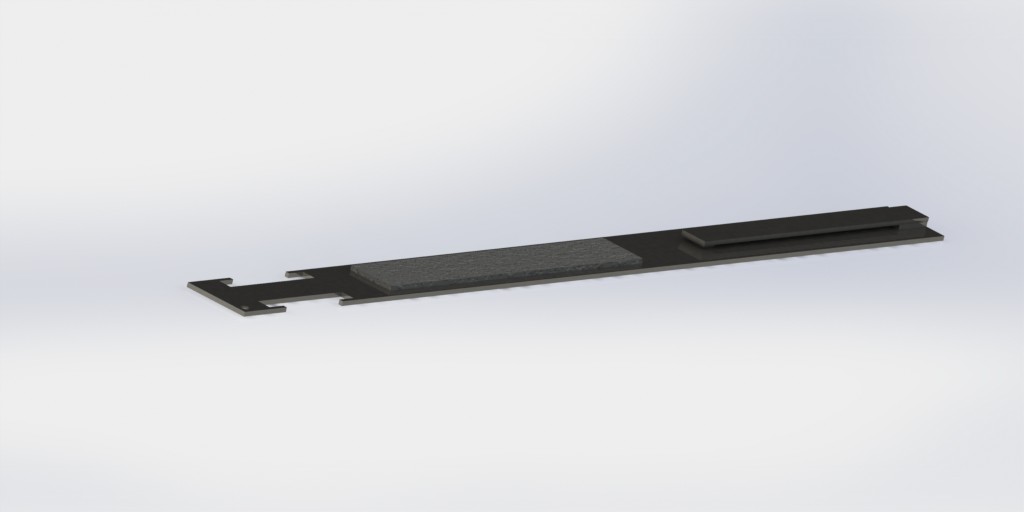

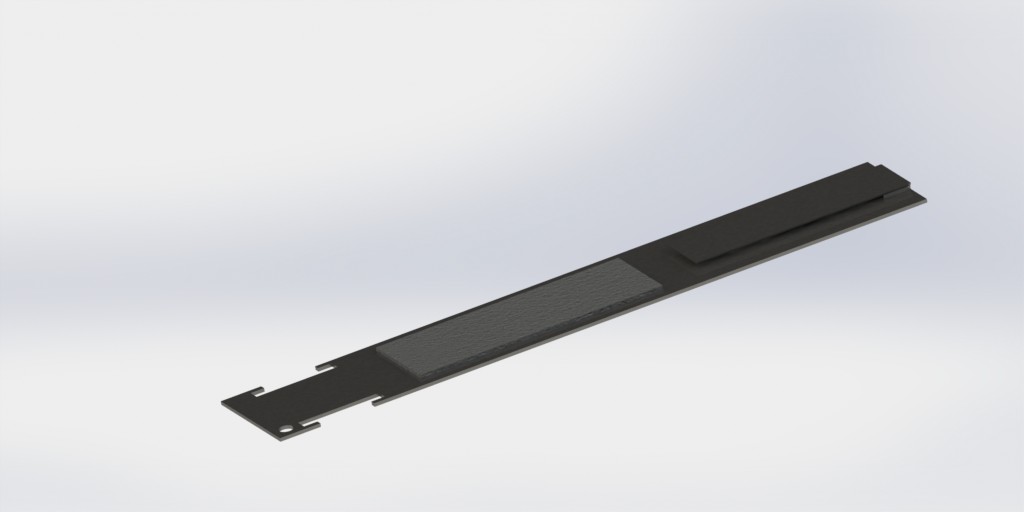

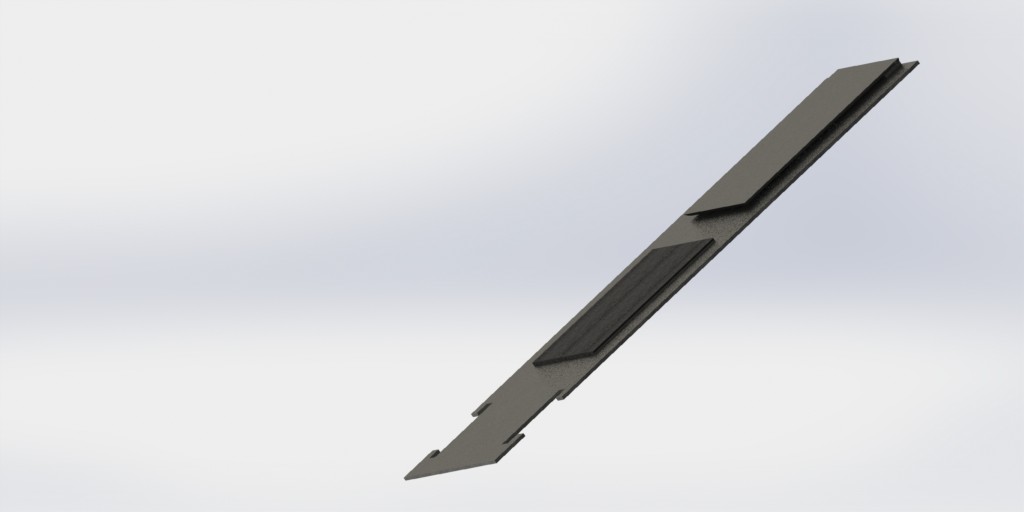

#11All files in STL and solidworks .SLDPRT and the assemblybyCameron Keaton
Download Files
- SolidWorks 2012 — full clip assembly
- SolidWorks 2012 — clip 4 front with spacer
- SolidWorks 2012 — clip 4 front no spacer
- SolidWorks 2012 — back clip with spacer stl
- SolidWorks 2012 — back clip no spacer
- SolidWorks 2012 — bace clip 3
- SolidWorks 2012 — clip 4 front with spacer stl
- SolidWorks 2012 — clip 4 front no spacer stl
- SolidWorks 2012 — back clip with spacer stl
- SolidWorks 2012 — back clip no spacer stl
- SolidWorks 2012 — bace clip 3 stl
Feb 26, 2013 16:37

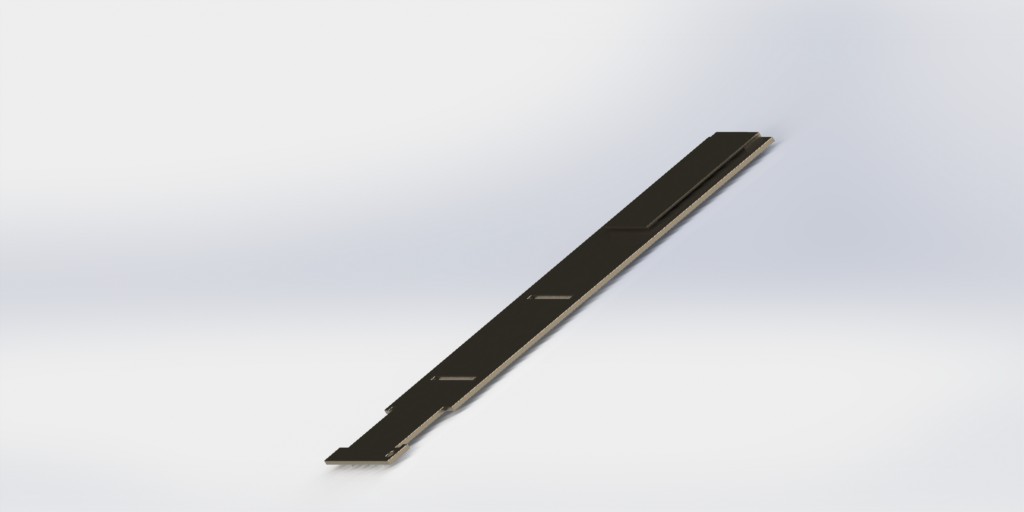

#101/16 in just the base plate everything is still the same with the other filesbyCameron Keaton
Download Files
Feb 26, 2013 15:58
Discussion
Why has the competition finished early?
Buyer
in other words possibly be creative in having the contents on only one side.
Buyer
* and fob
Buyer
right direction. can you play around with getting the id/cc's on and fob on the same side so that once clipped to the front pocket the side that is flush with the pocket opening is bare. That way all contents face the side of the clip towards the leg (once clipped)
Buyer
yes. STL works.
Tue, 12 Feb 2013 19:50:23 +0000
They would be ready for 3D printing.
Tue, 12 Feb 2013 19:50:08 +0000
Would you be interested in .stl files?
Buyer
alot of the key fob have concave buttons. So I don't think that'd be an issue.
http://www.clublexus.com/forums/attachments/is250-is350-is-f-classifieds/219352d1313345409-used-key-fob-2007_lexus_ls460_preview_test_2007_lexus_ls460_key_fob_image_0011_cd_gallery.jpg
http://www.clublexus.com/forums/attachments/is250-is350-is-f-classifieds/219352d1313345409-used-key-fob-2007_lexus_ls460_preview_test_2007_lexus_ls460_key_fob_image_0011_cd_gallery.jpg
Designer
ok. Let me work it up....
Designer
and the elastic option? My fear with metal is that it would damage the fob buttons.
Buyer
steven, I didn't think of elastic. Sounds like it may be a good idea. key fob's do vary by size and I did think that would be an issue. My key fob measures about 2 1/2" in length and just over an inch in depth.
Buyer
Aghisilaos,我尊重你的意见。我去健身房everyday and I the key fob bounces off my leg in my gym shorts like I have a golf ball in my pocket. It falls out when I decline press. and I forget it when I set it in the cupholder on the treadmill. So my opinion is yes its does need one and if it would clip into/onto something that hold the other bare essentials I bring into the gym then yes it would be helpful. This is designed to help me out first and then, maybe, other ppl. thanks for your comment
Designer
Key fobs come in different shapes and sizes. would an elastic holder be acceptable? Or does it have to be the same metal type construction?
