Locking Mechanism Design for Consumer ProductBlind
in3D Modeling Designheld bylkharrLast seen:
Contest Ended, Winner(s) have been selected.
-
Open
-
Choosing Finalist
-
Ended
Description:
We are looking for a locking mechanism for our upcoming product that is simple and minimalistic, yet very robust in how it locks the two pieces together. When locked there will be lateral stresses forcing the pieces to slide apart. We want there to be virtually no chance of the pieces coming apart by accident while locked, and the mechanism must be simple and intuitive.Items that must reamin the same are the length and width of the objects. Enjoy full freedom to change the trapizod shape.

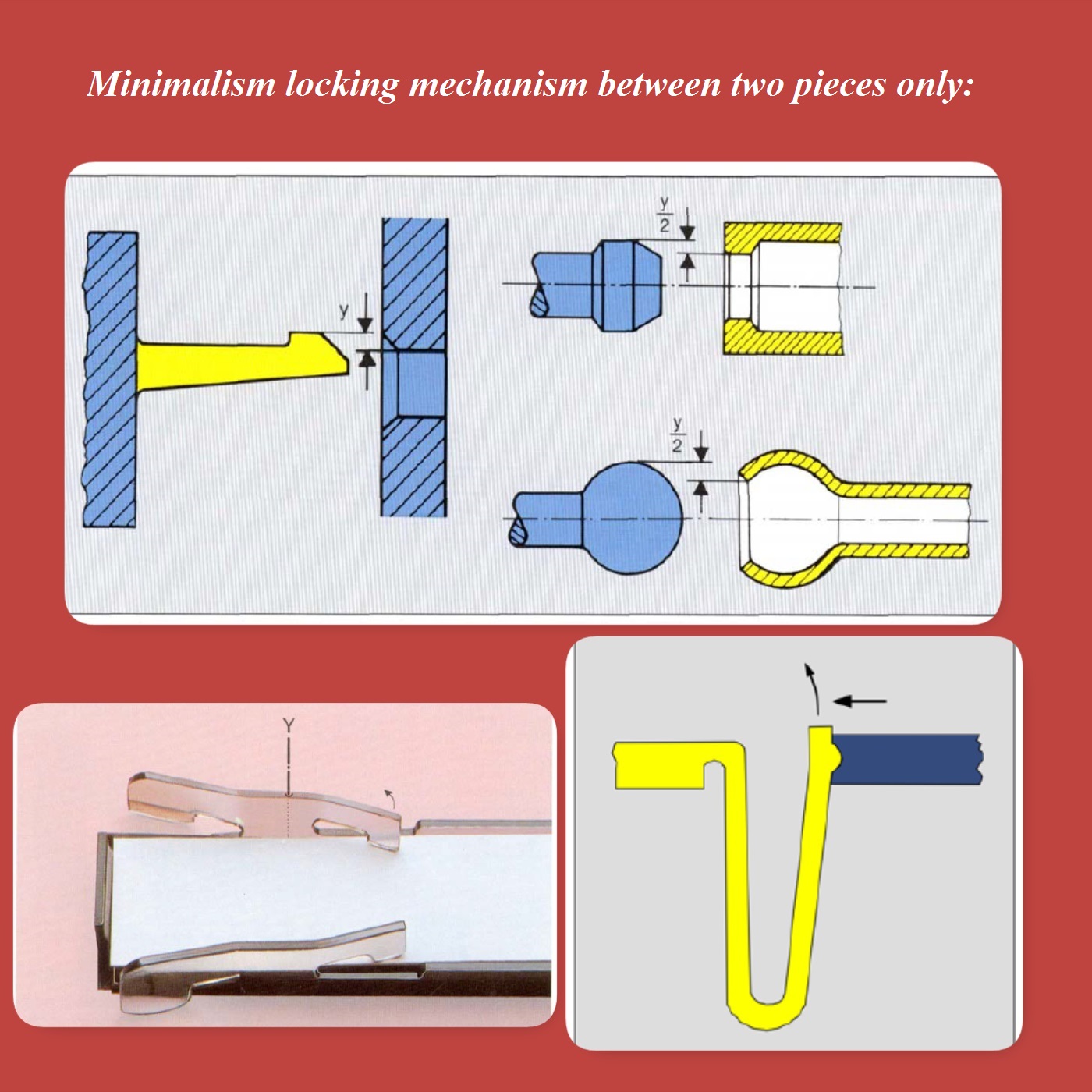

Please refer to attached images for some of our previous ideas. These are simplistic, but they are either not aestheticly pleasing or they do not provide a reliable lock while the product is in use.

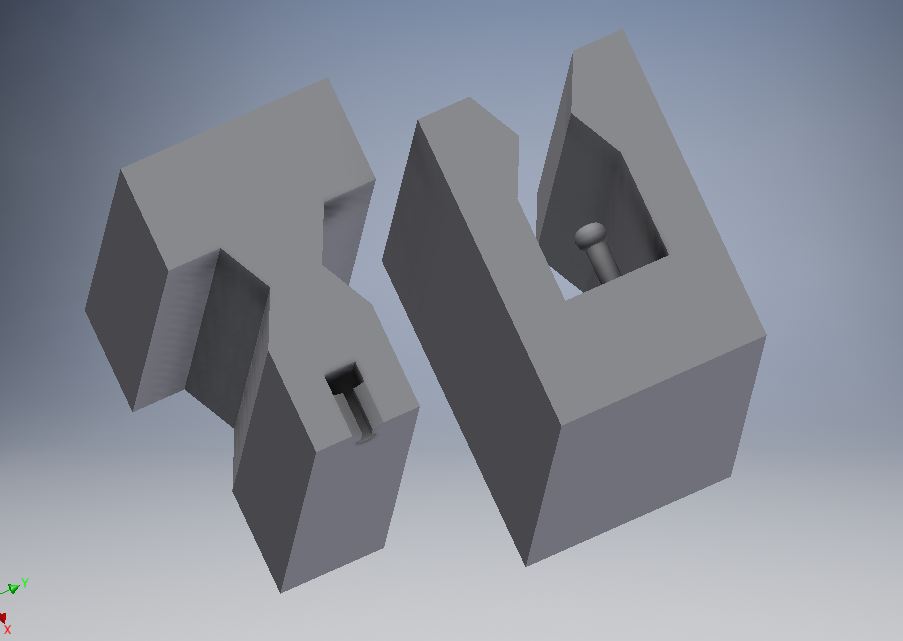

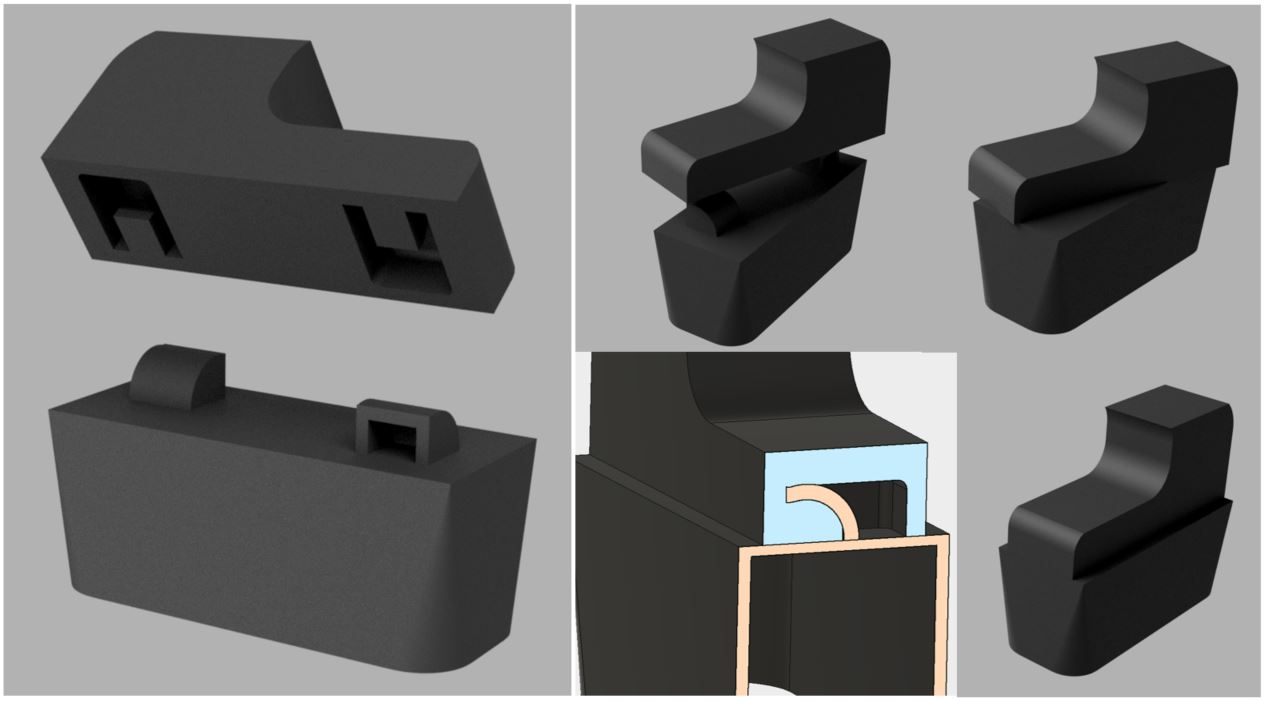

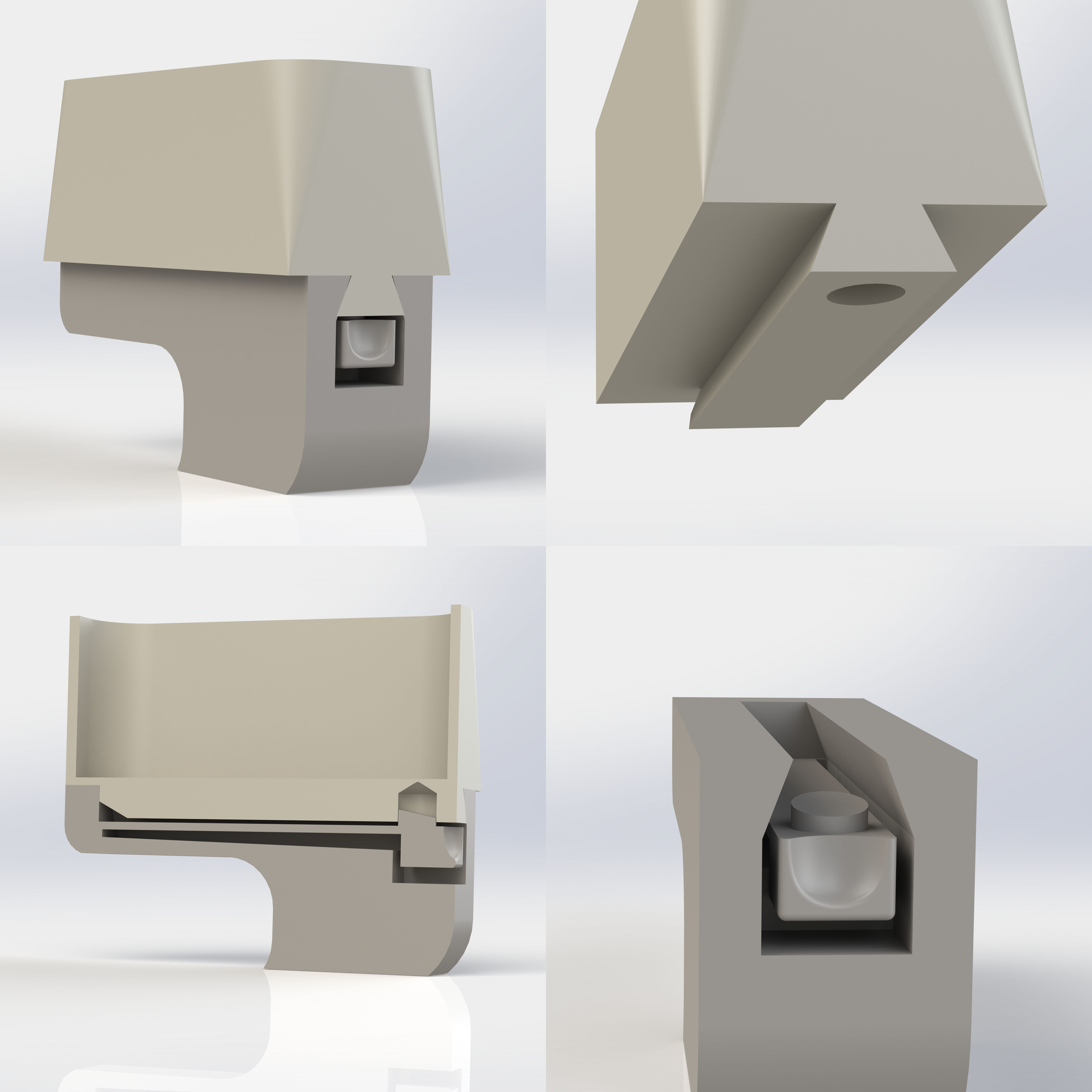

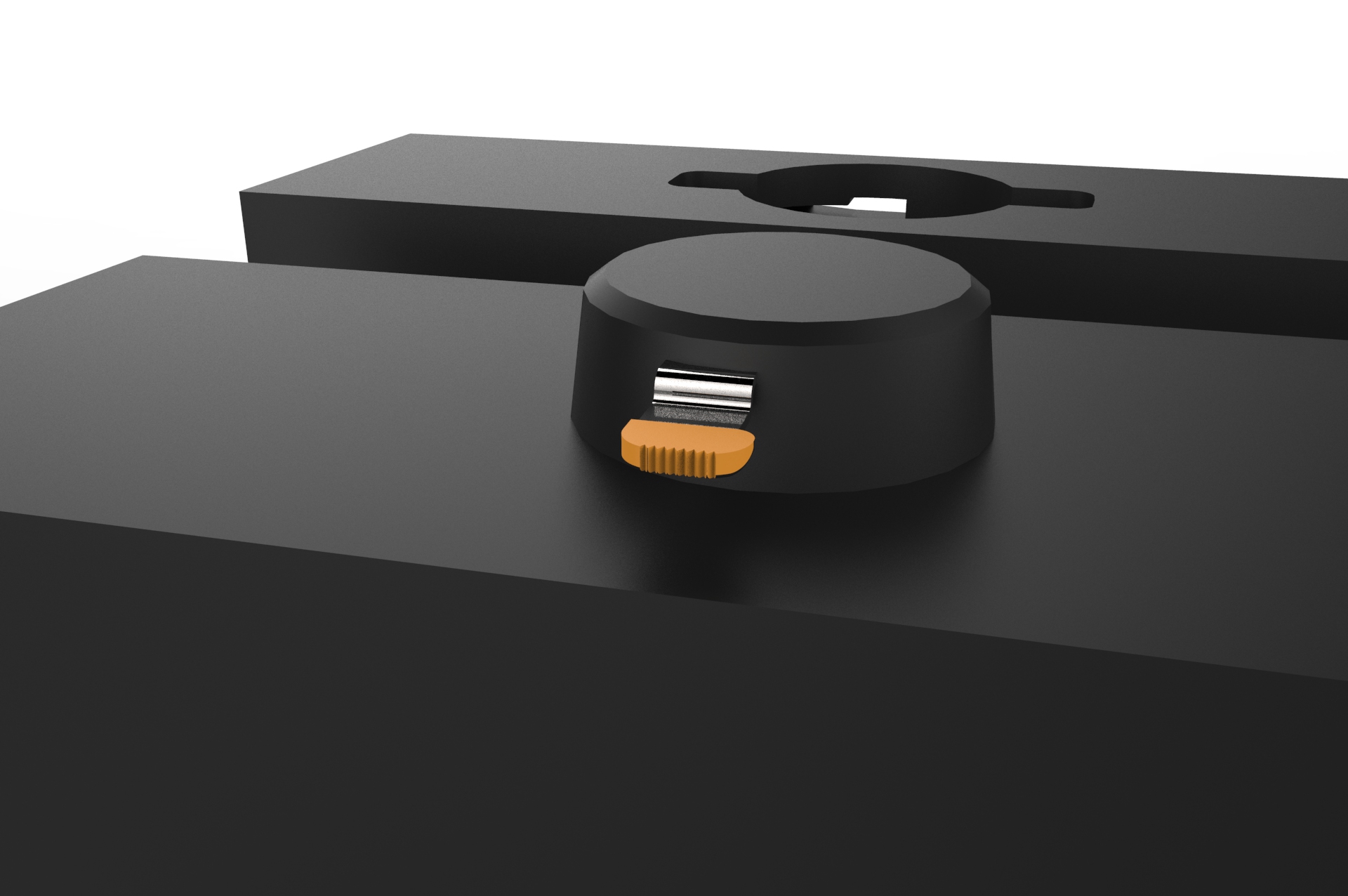

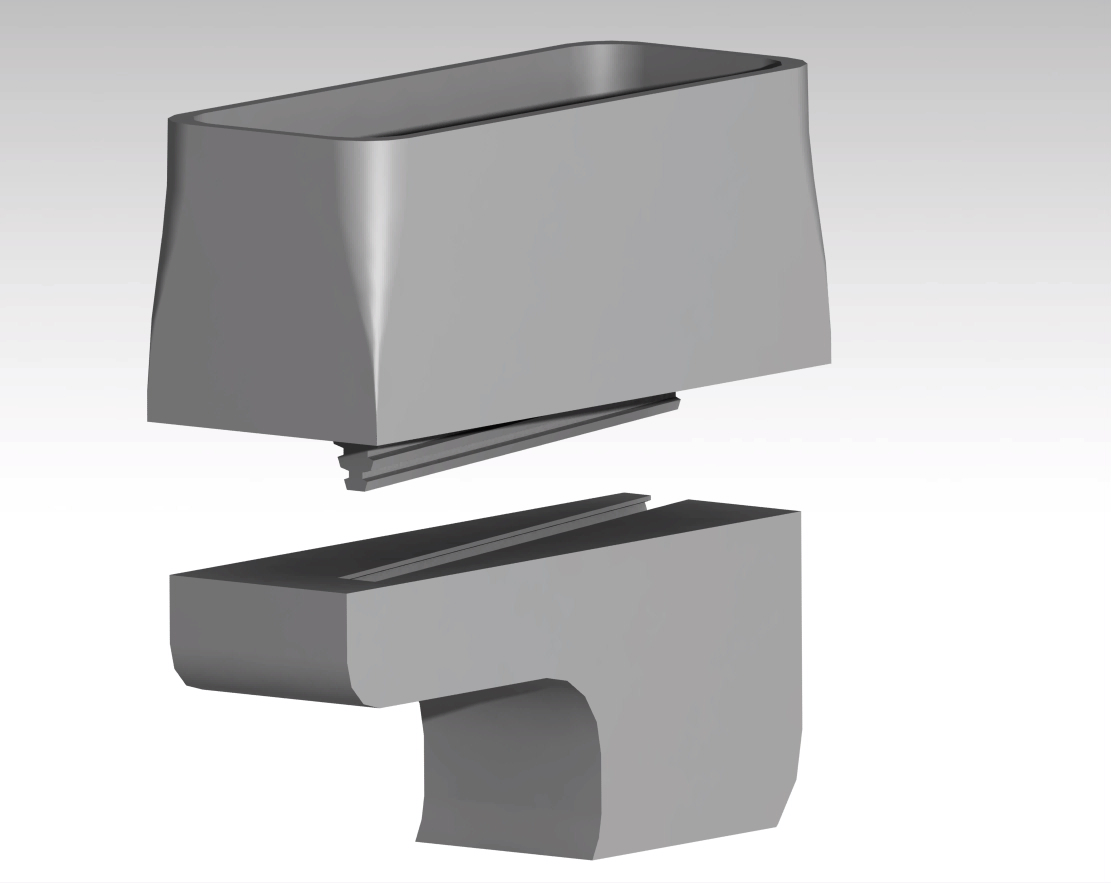

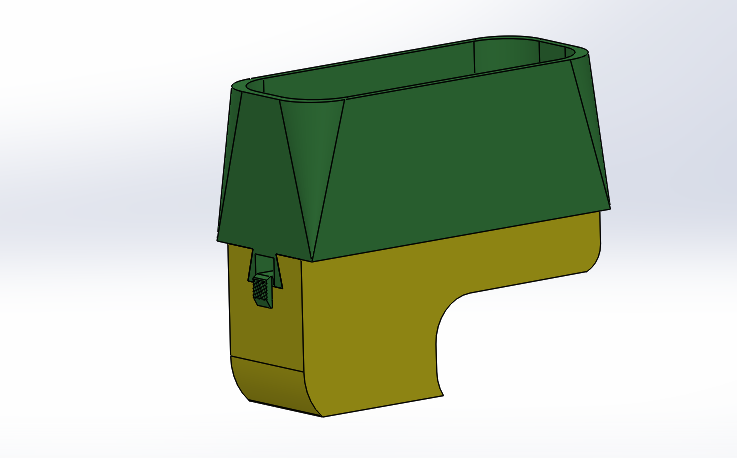

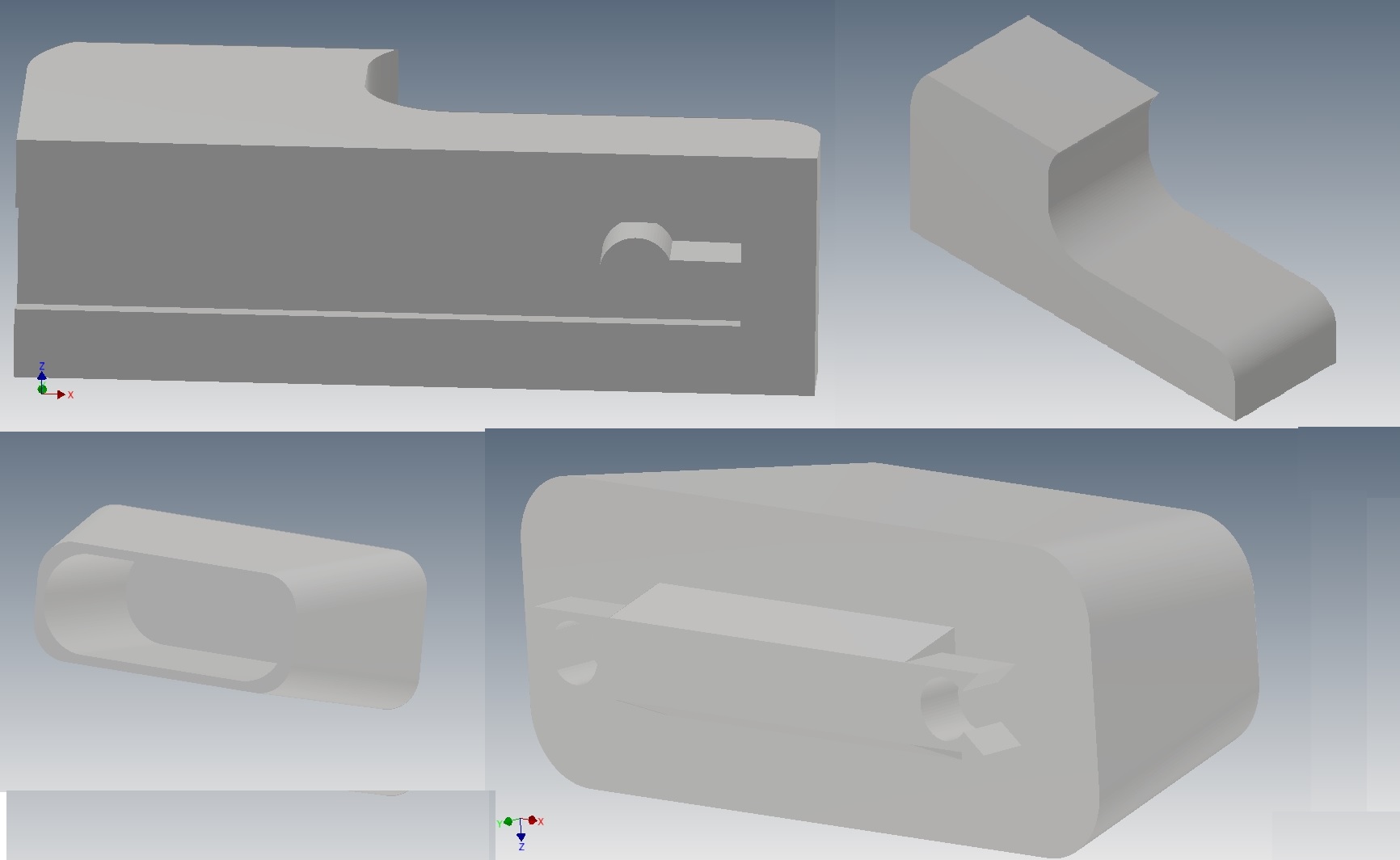

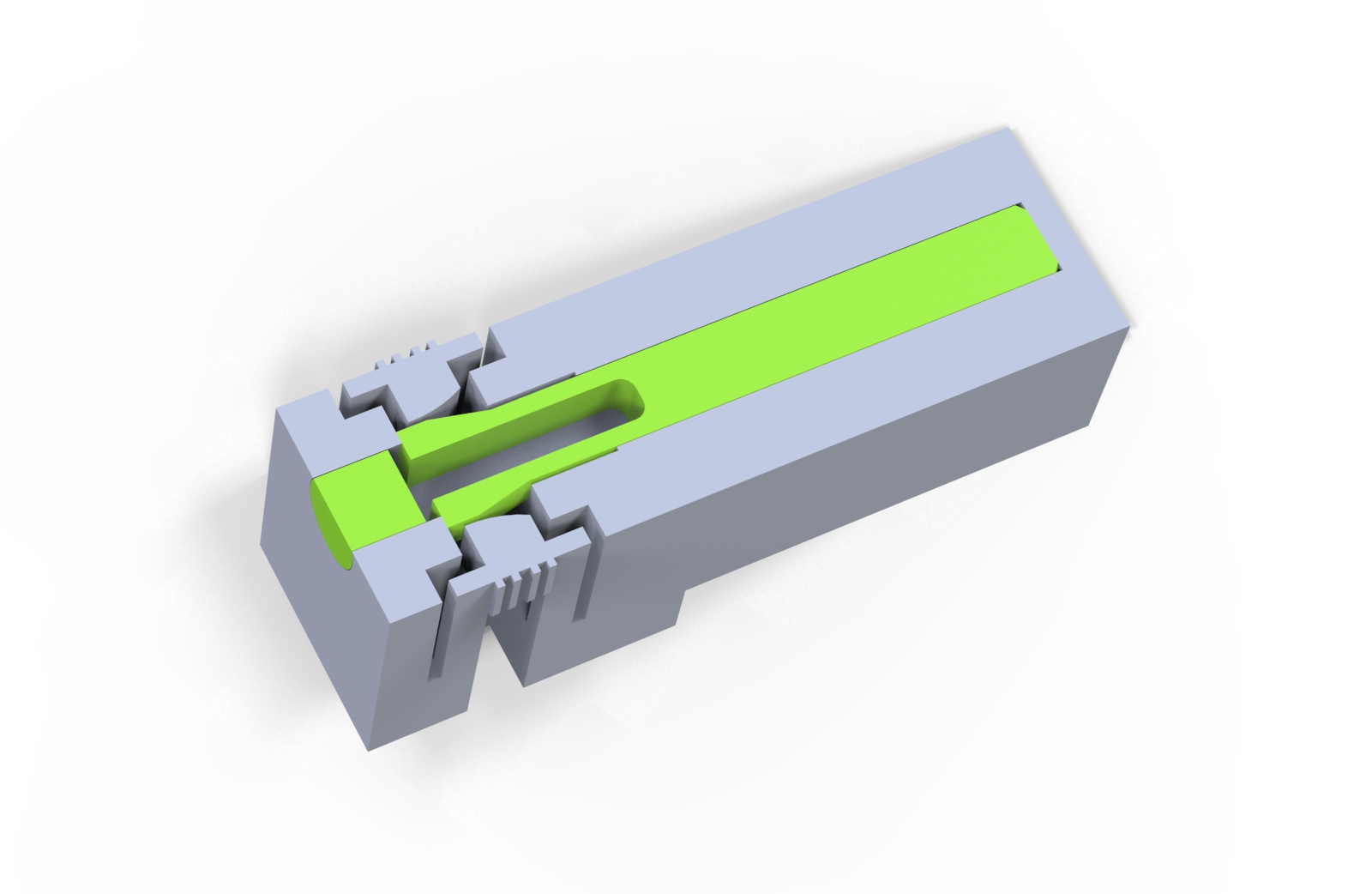

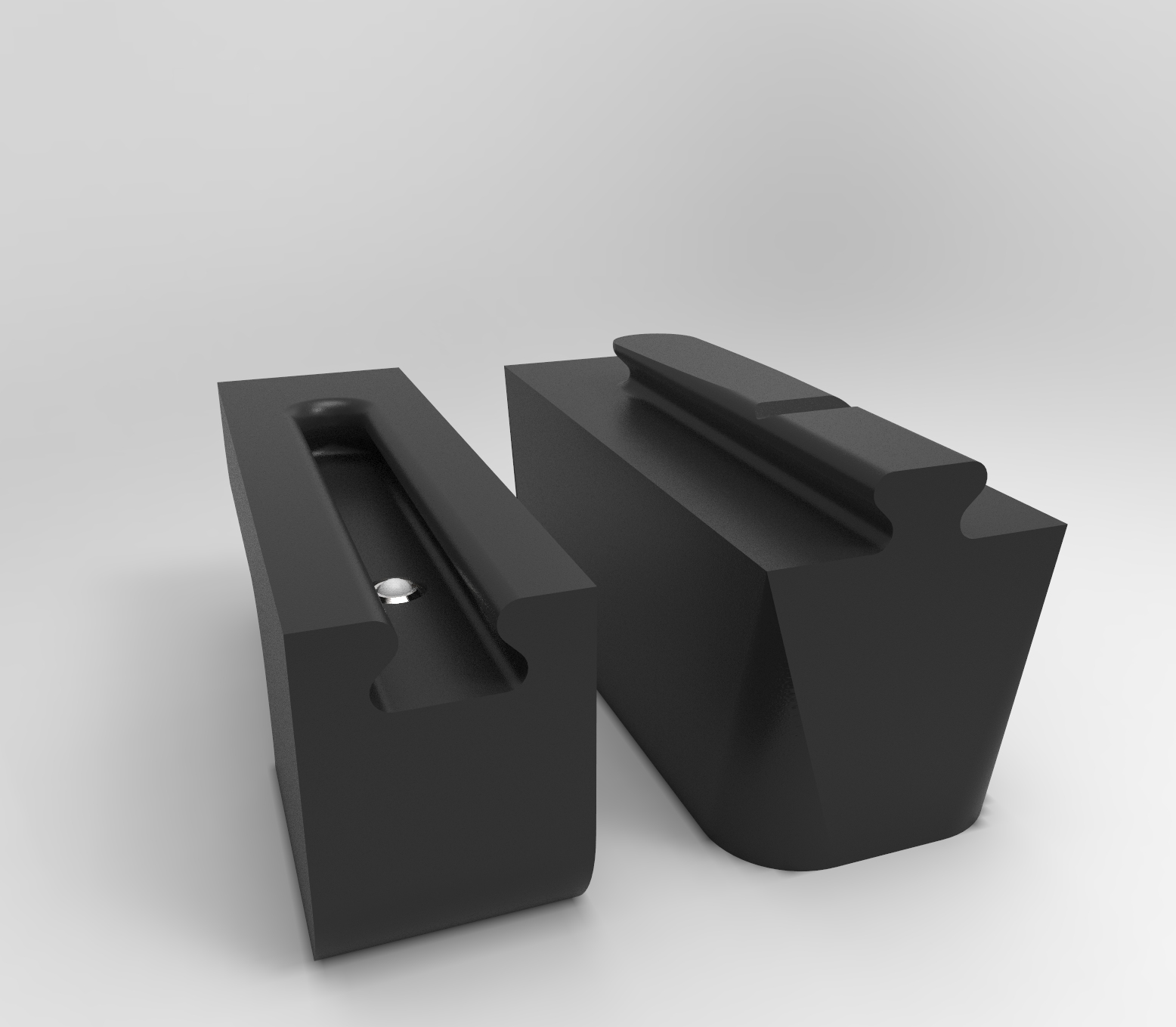

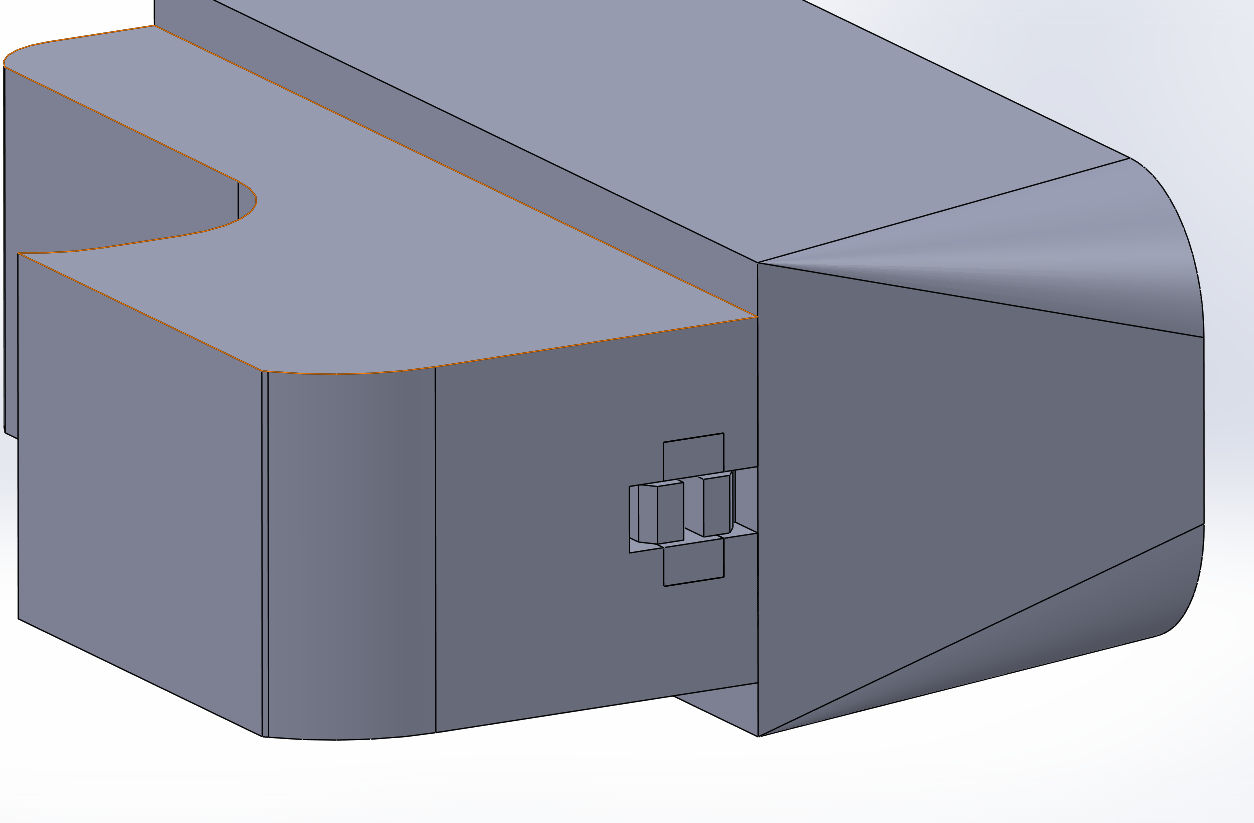

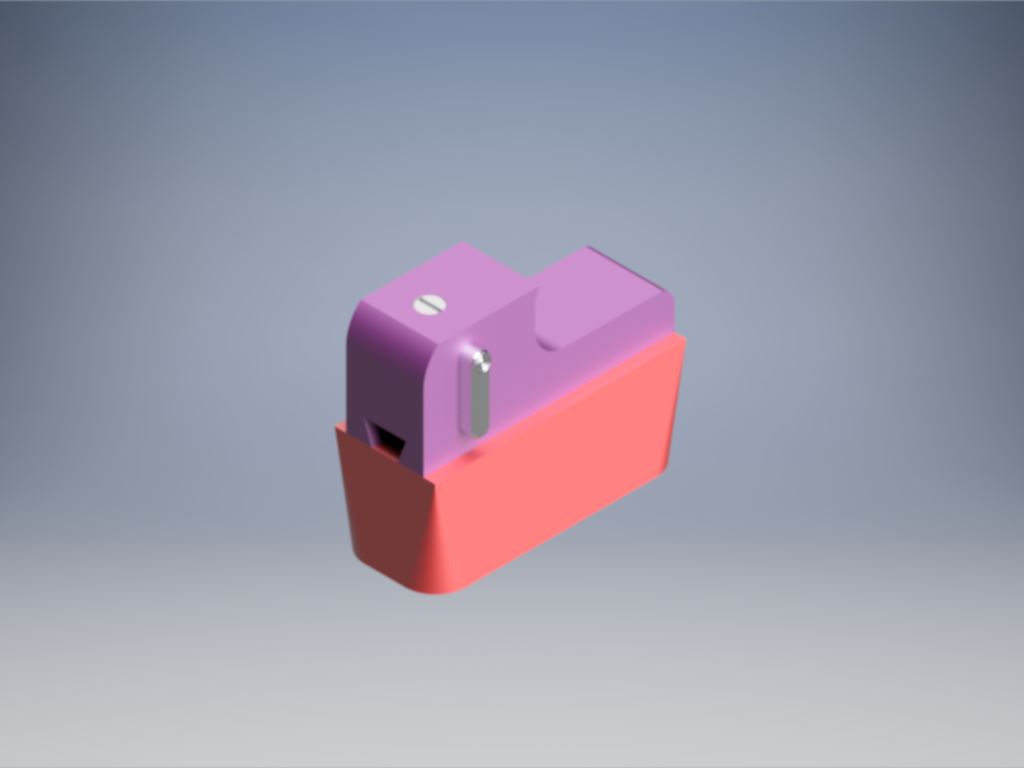

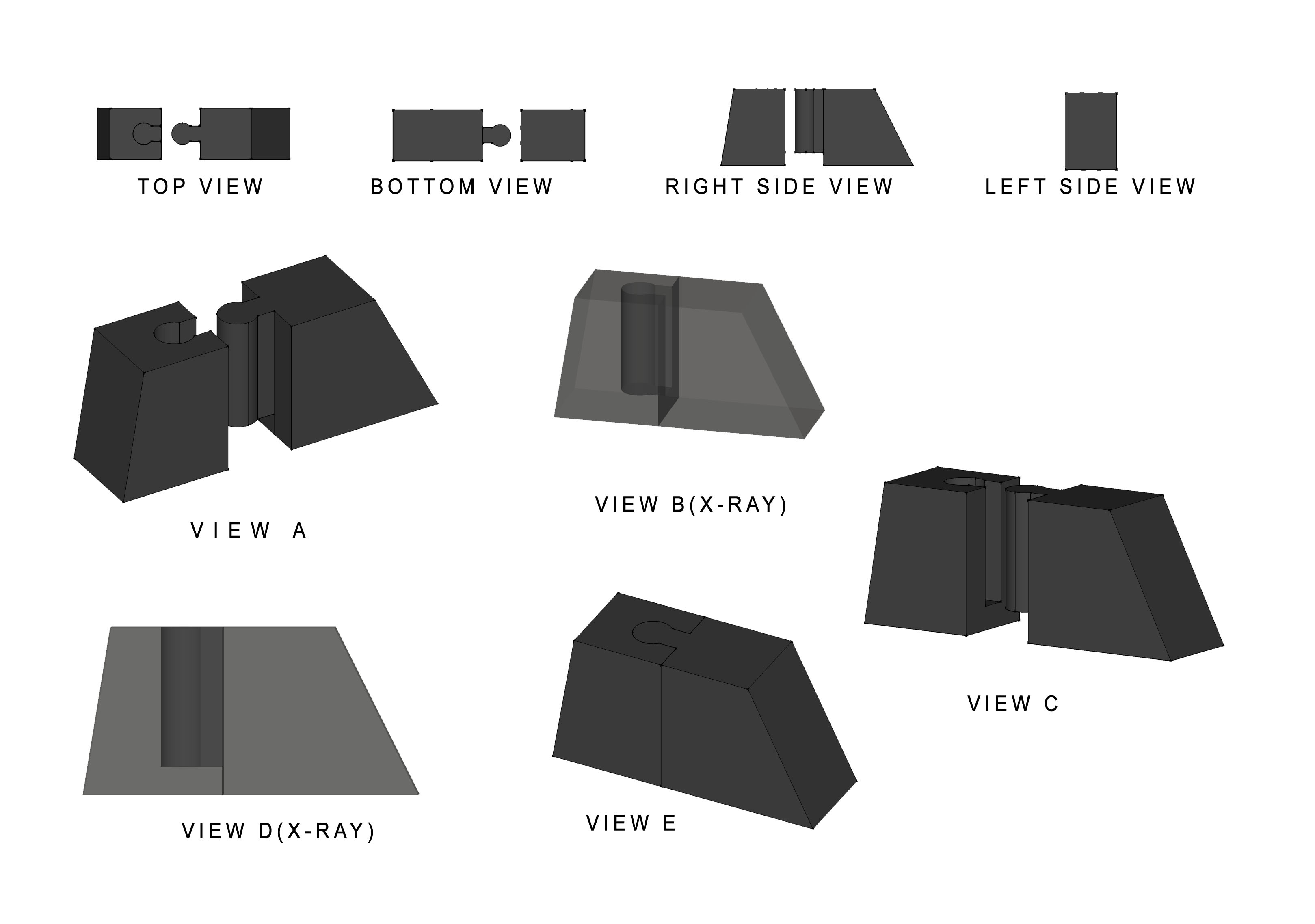

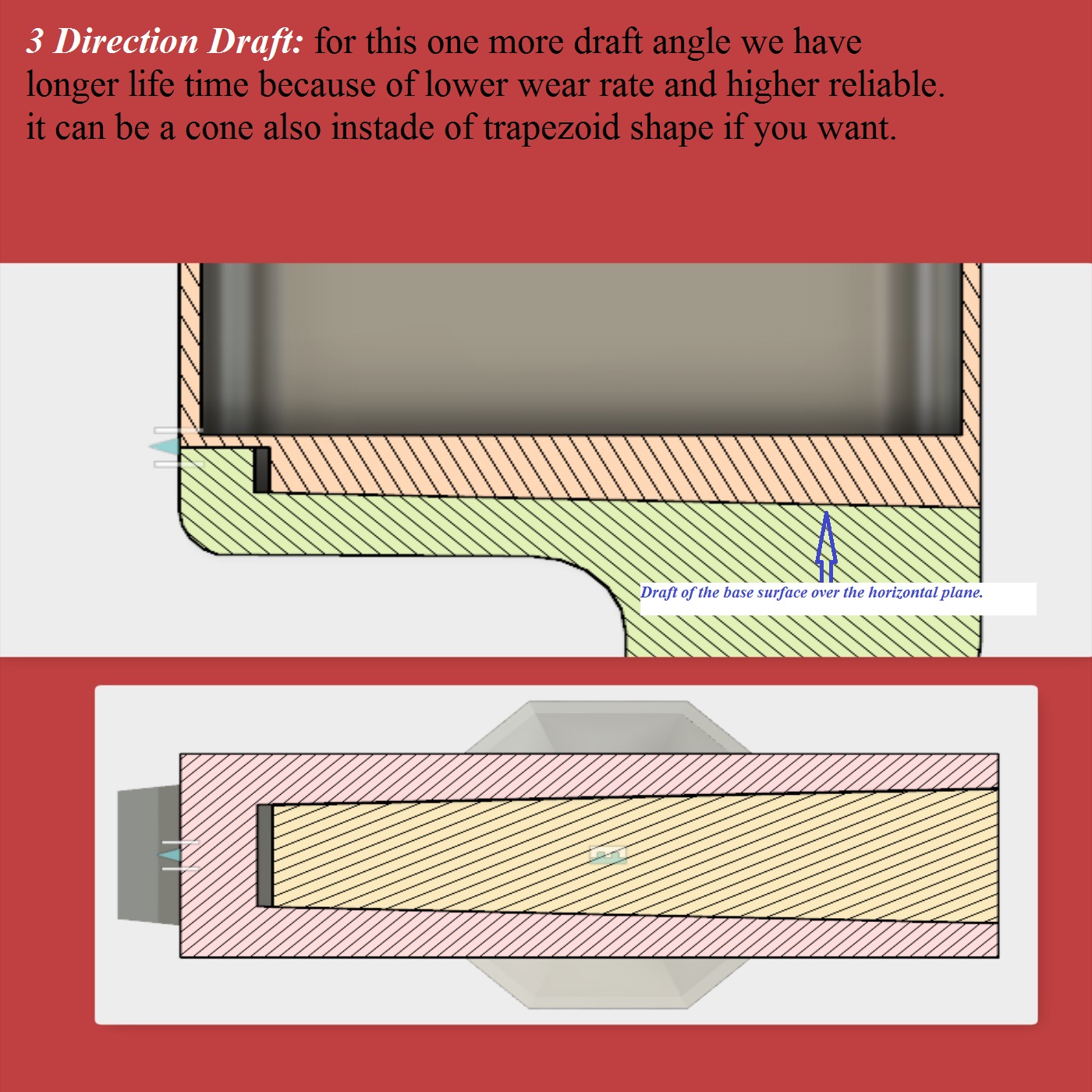

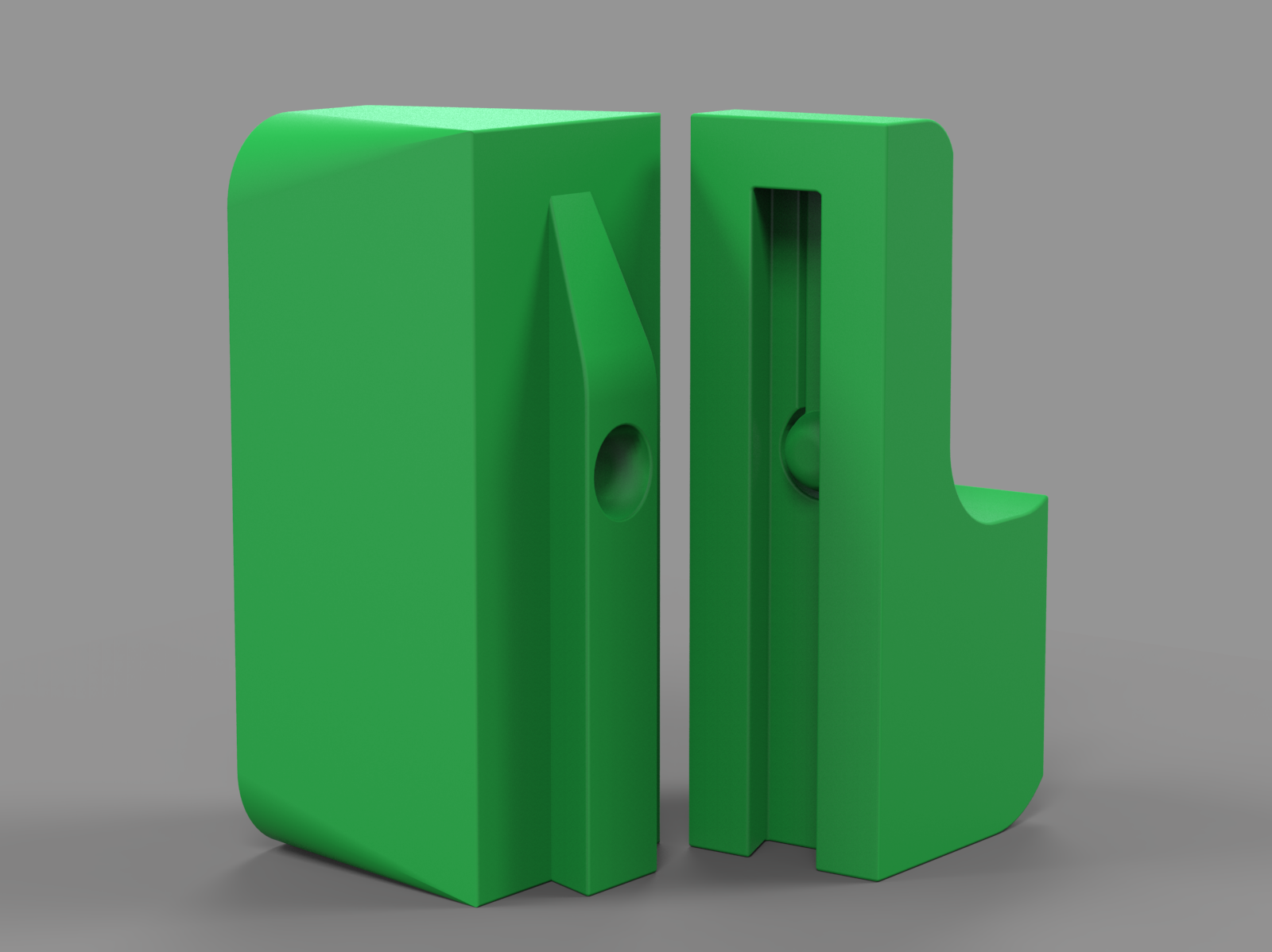

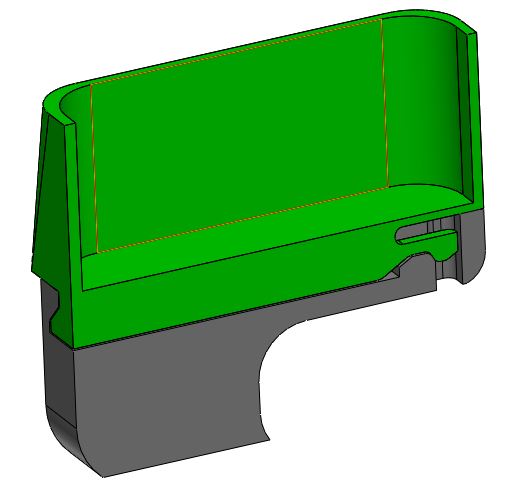

We have uploaded 4 different file types because we wern't sure what your preference would be. Please also take a look at the attached images to see the other mecanisms that we have designed thus far. These are the ones that we like for simplicity and minimalism sake but they are not the most effective or intuitive.
Wants:
简单、简约、锁的有效性,intuitive design
Don't Wants:
Ideally, the mechanism would be internal or along the long edge of the pieces. We are not looking for something with various other pieces that will be needed to be manufactured.
Software:
- Autodesk Fusion 360

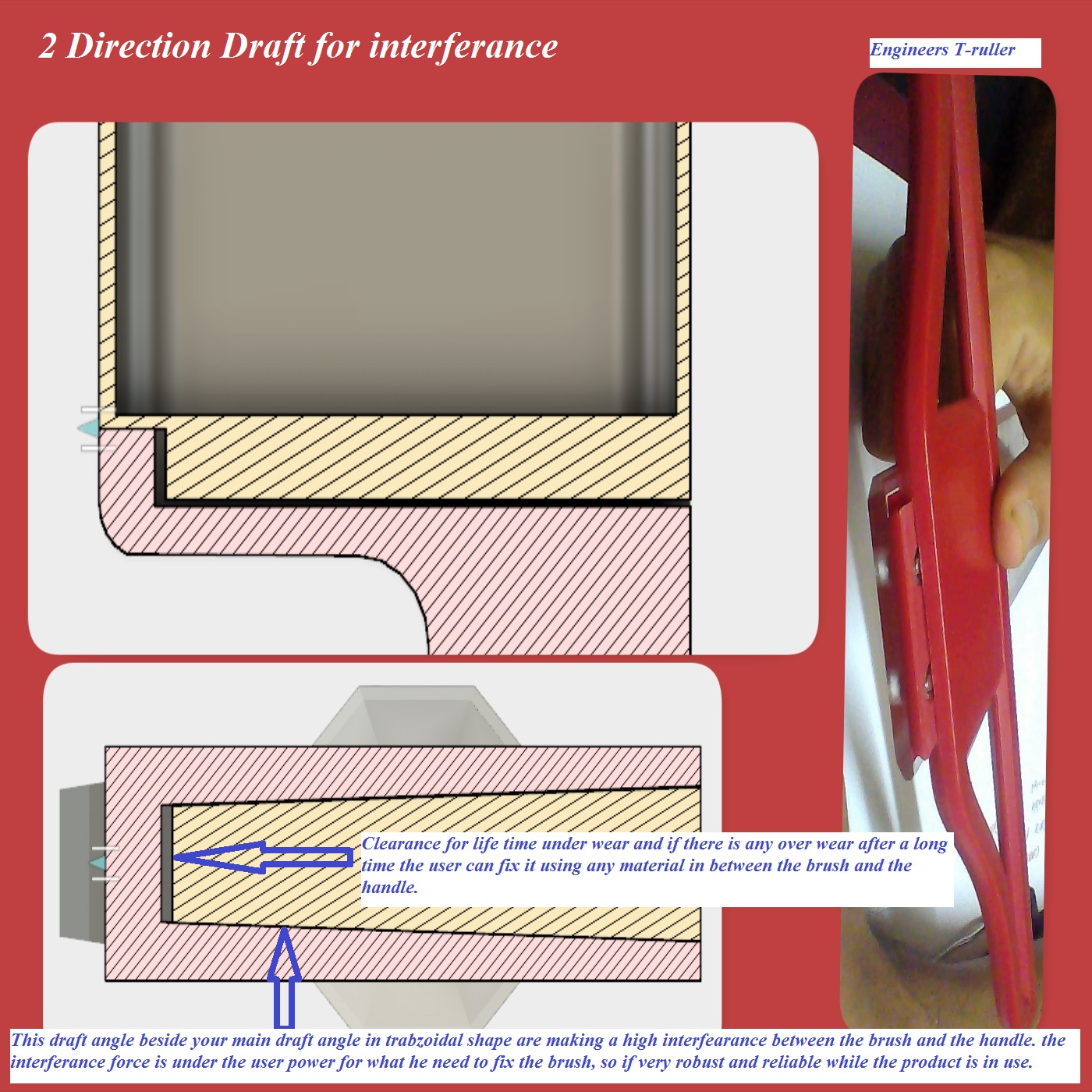

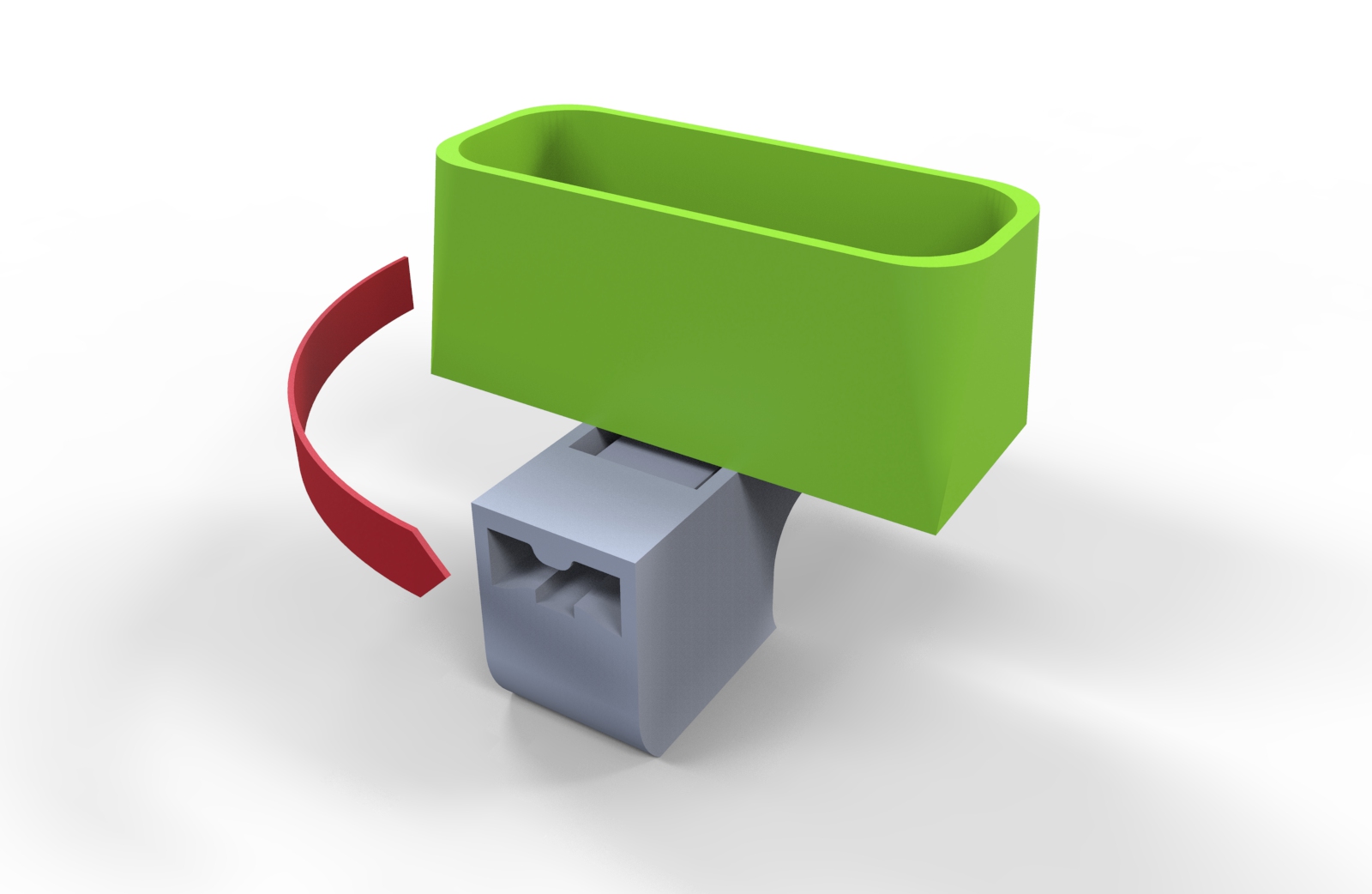

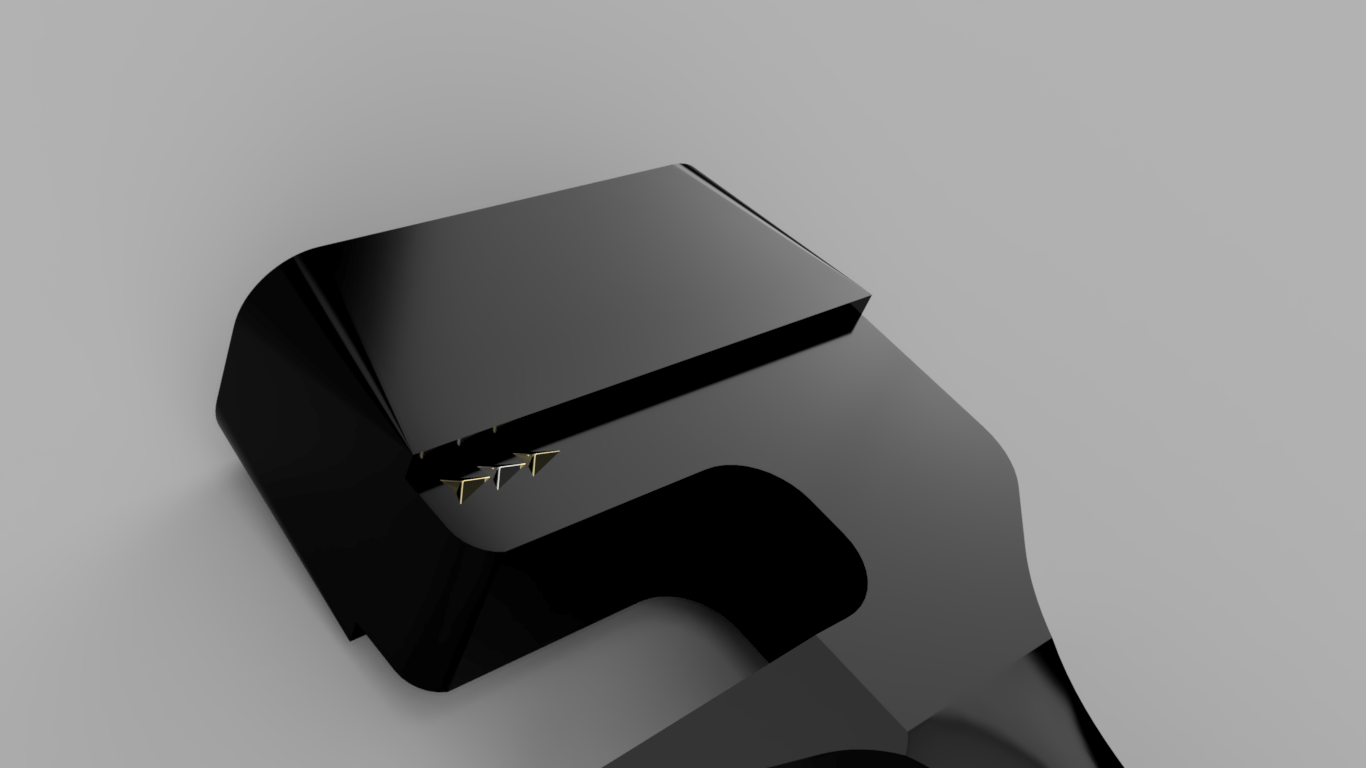

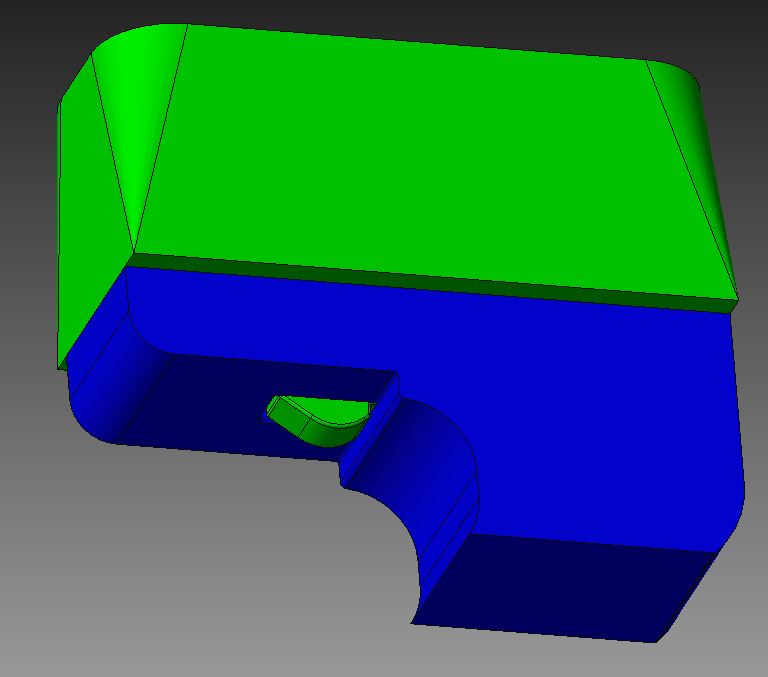

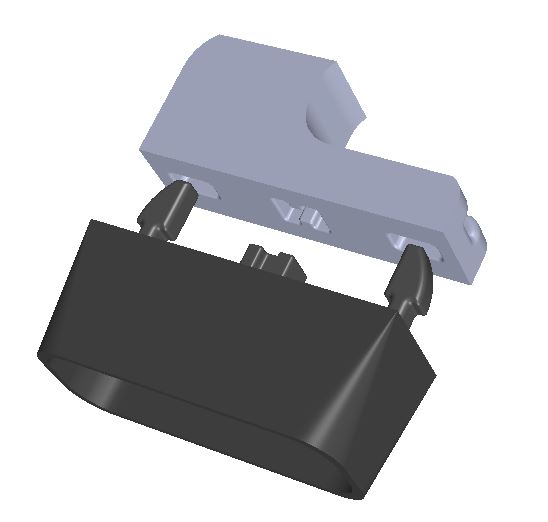

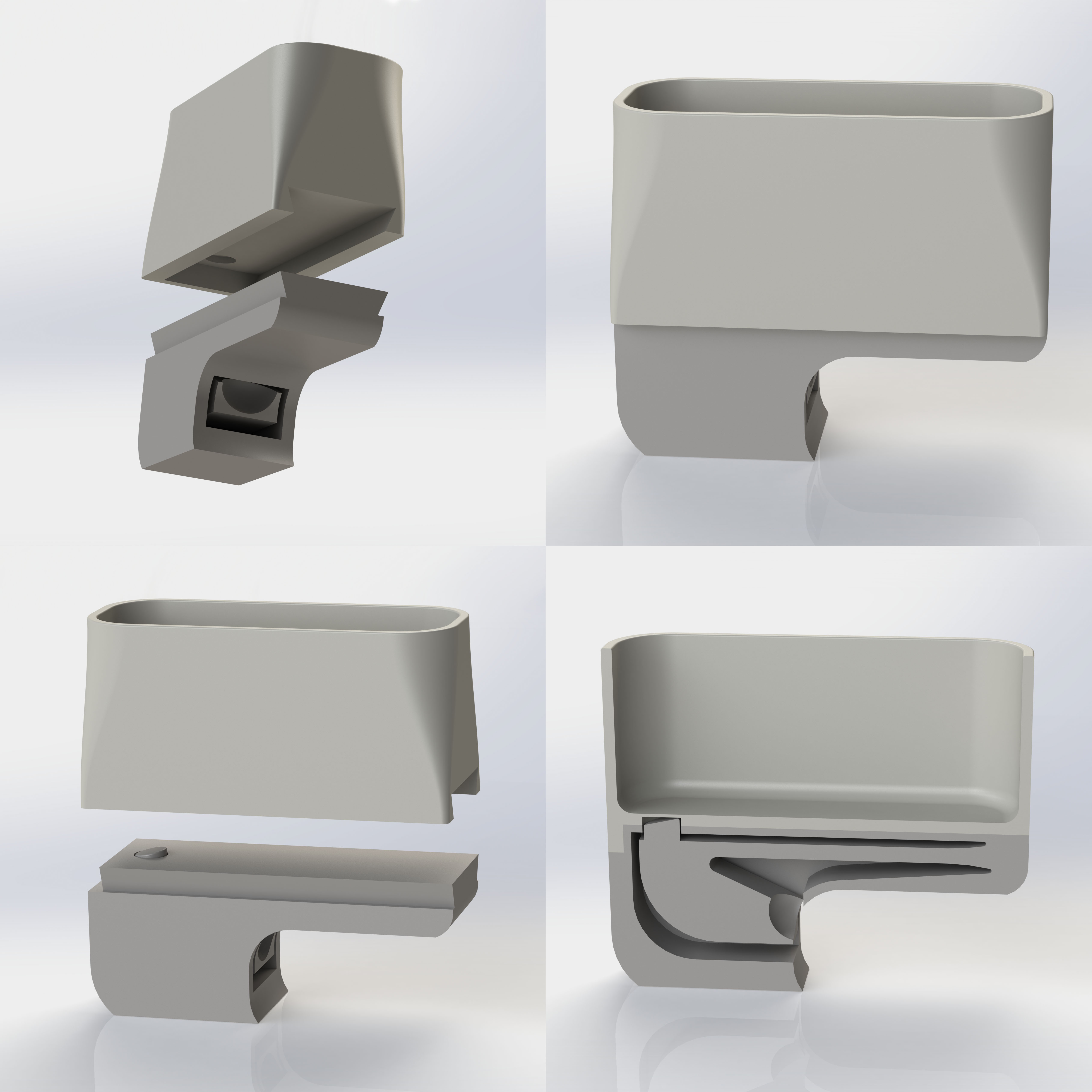

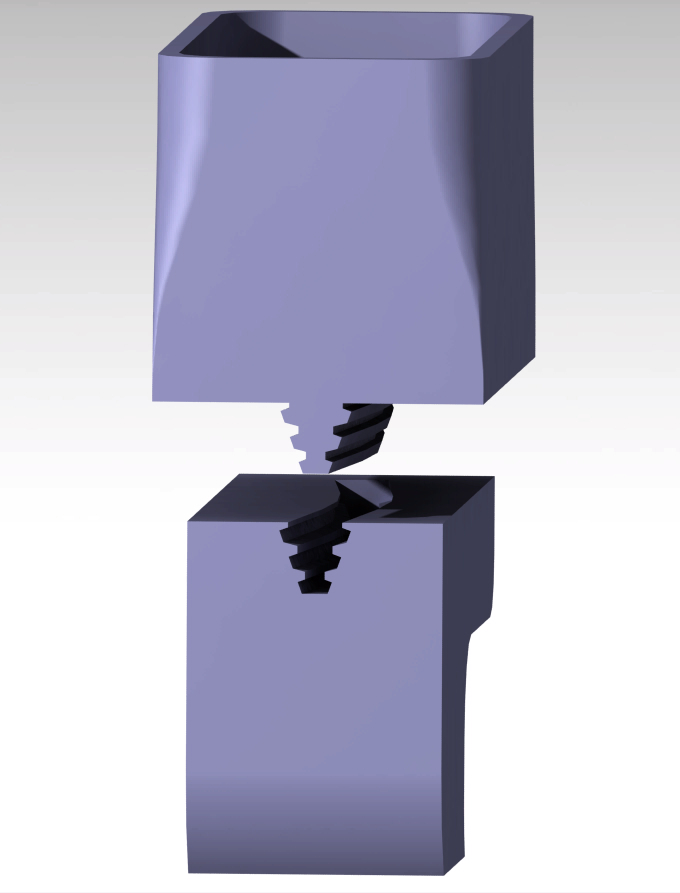

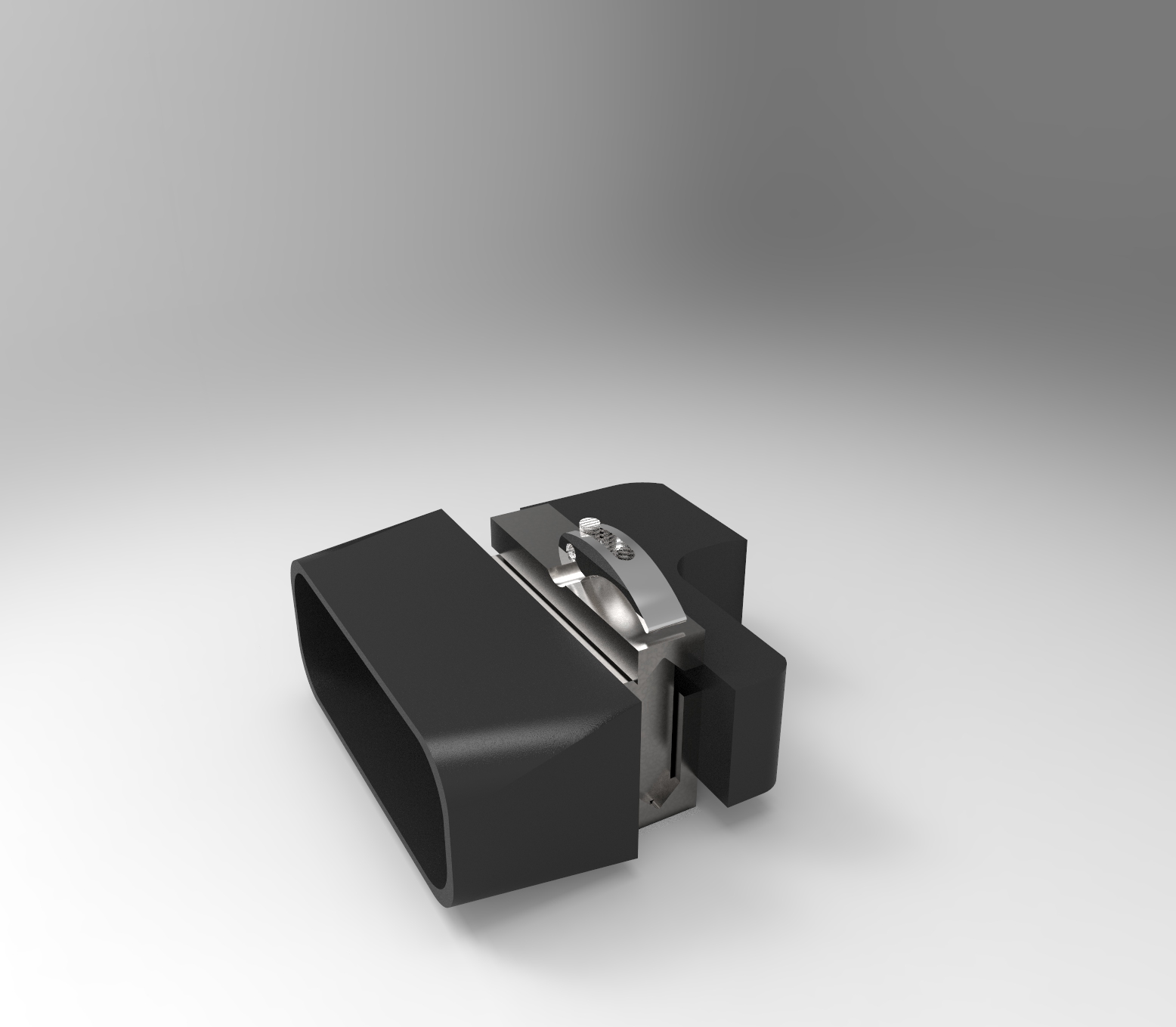

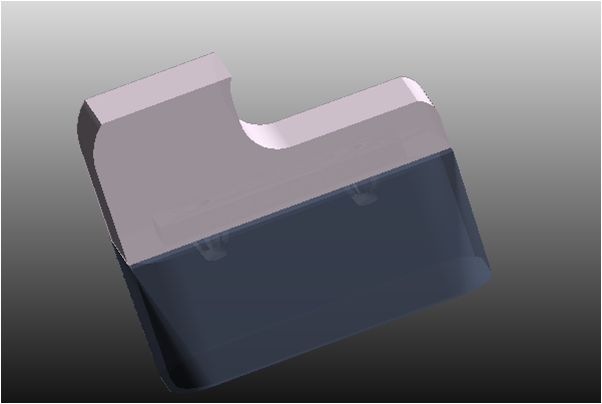

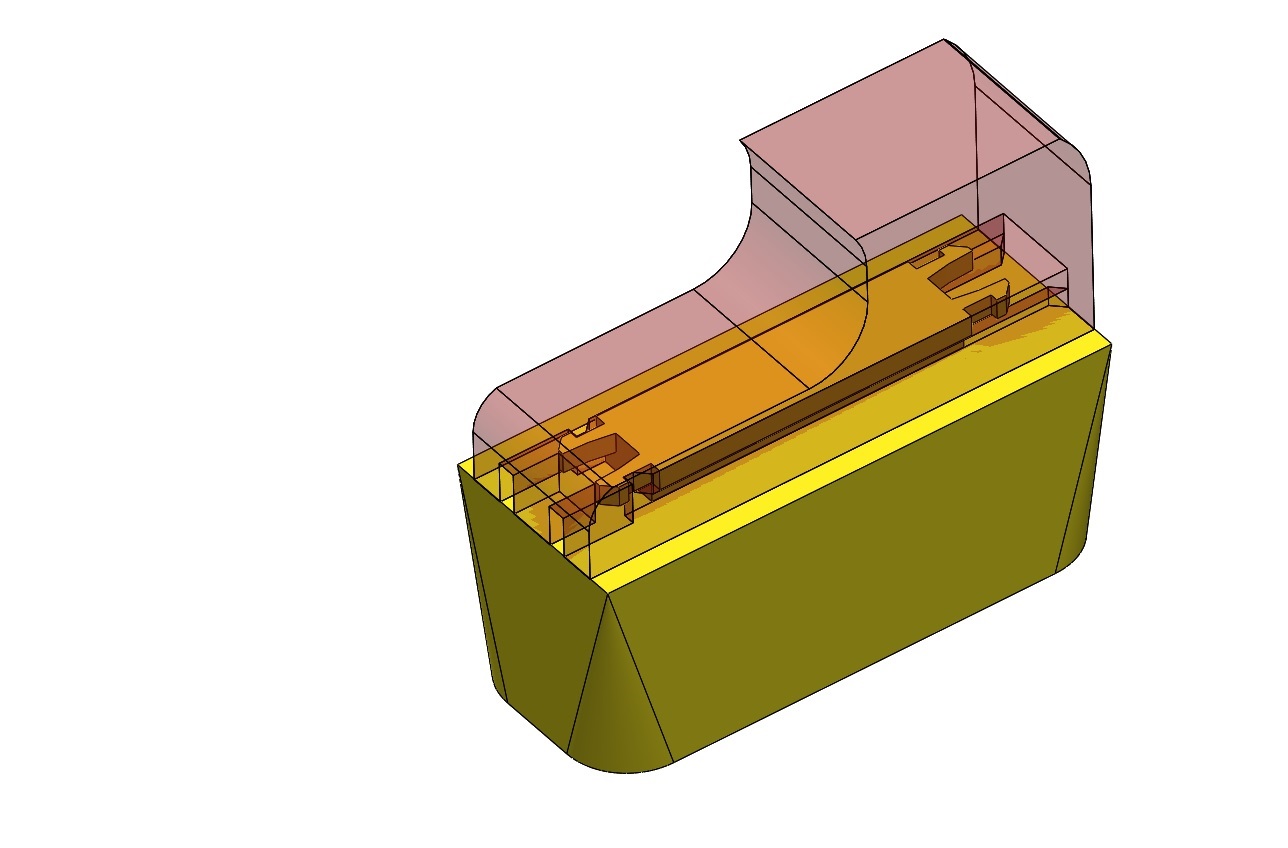

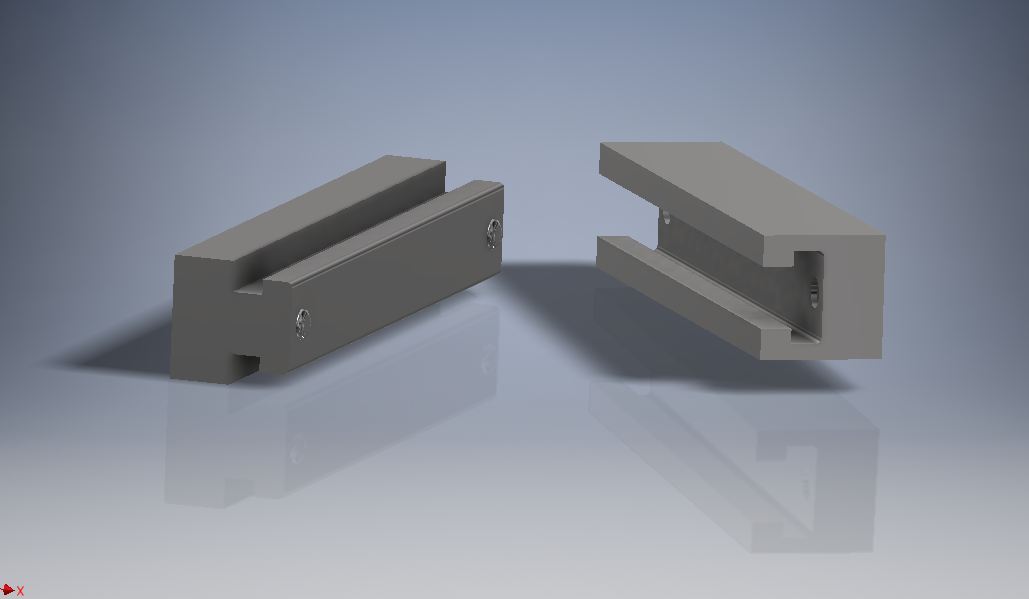

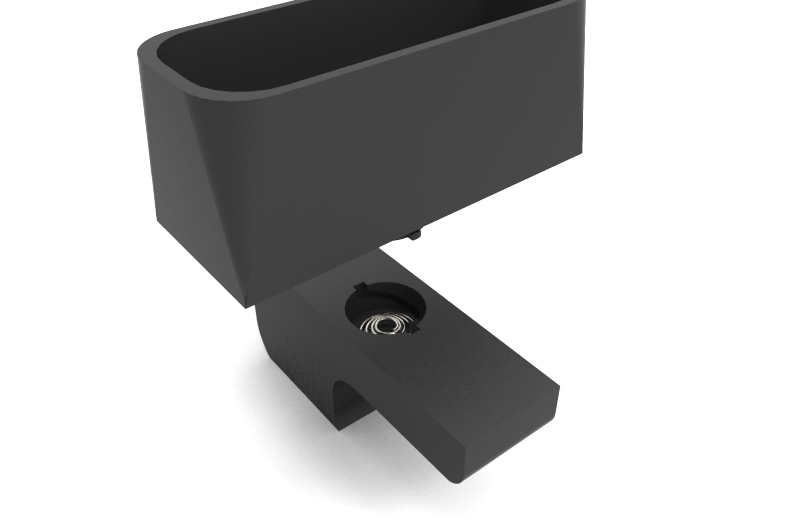

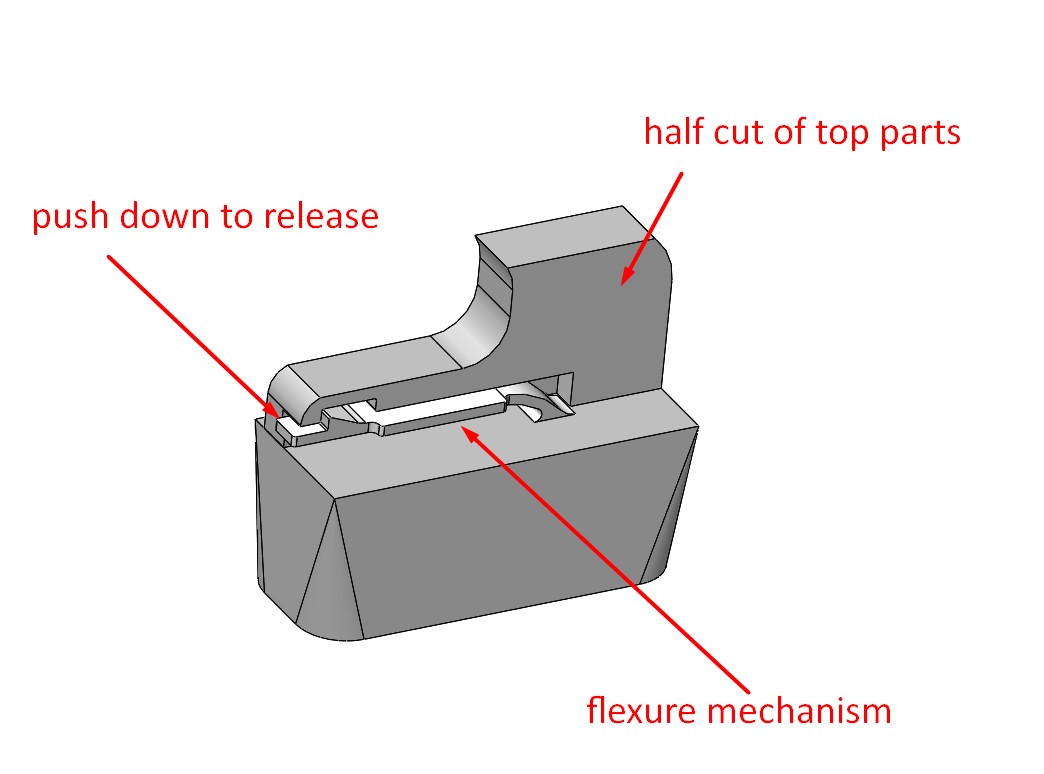

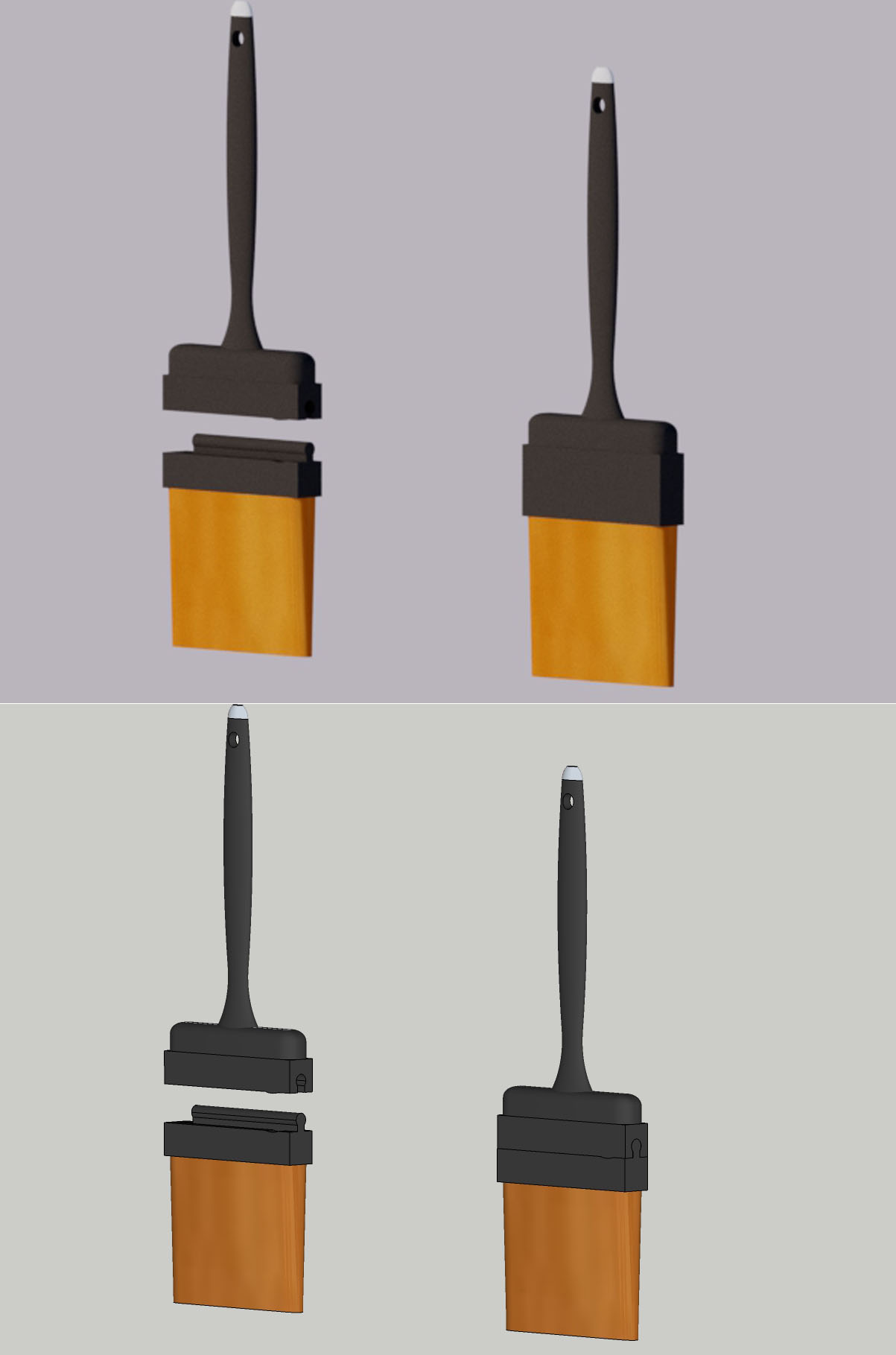

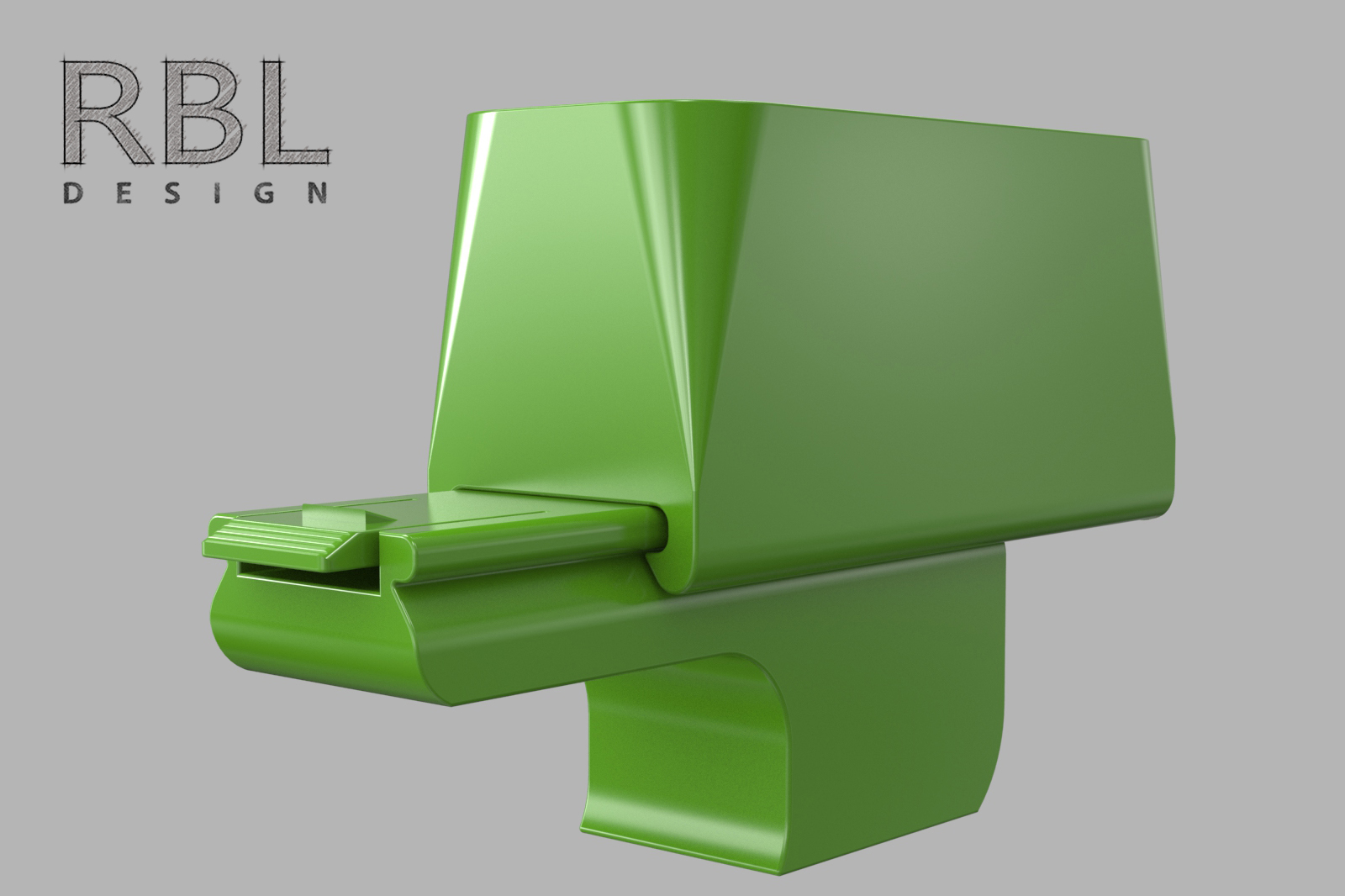

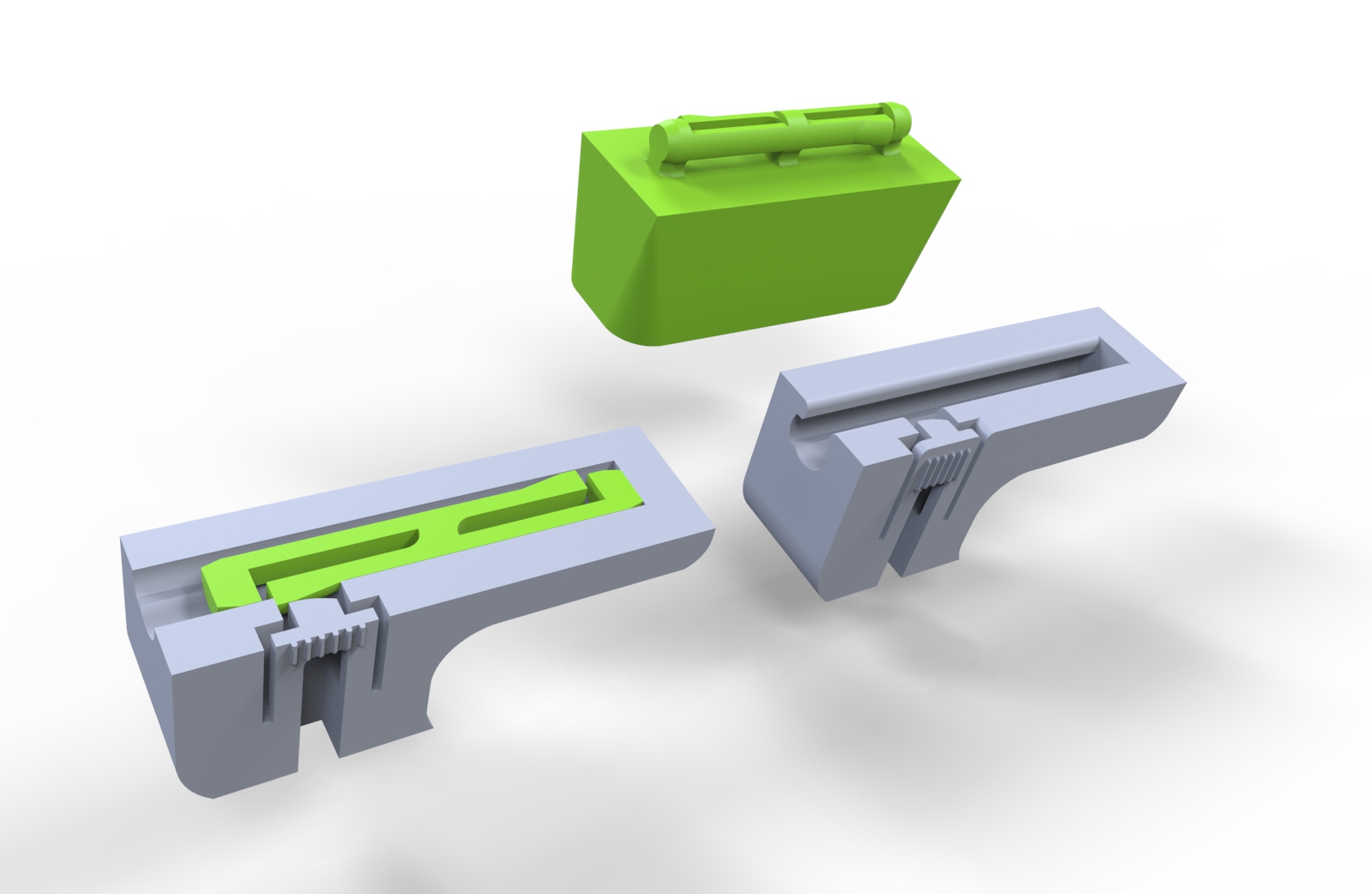

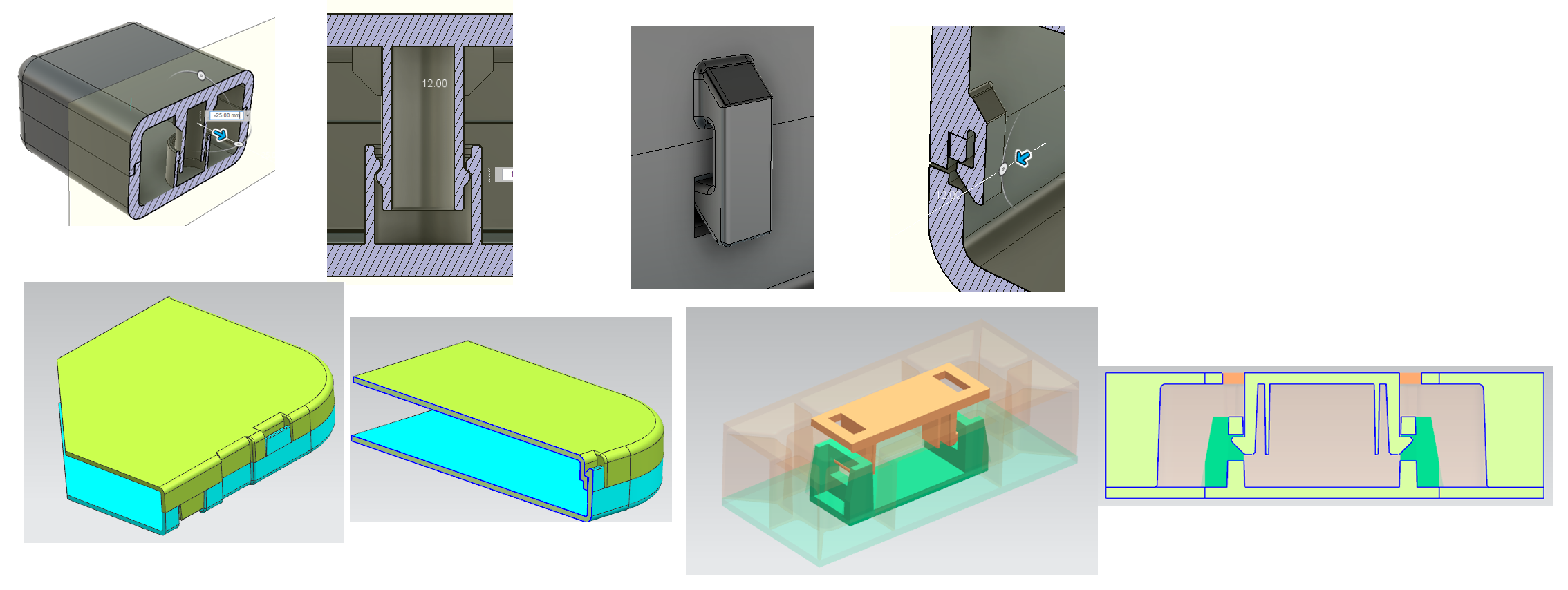

Entries

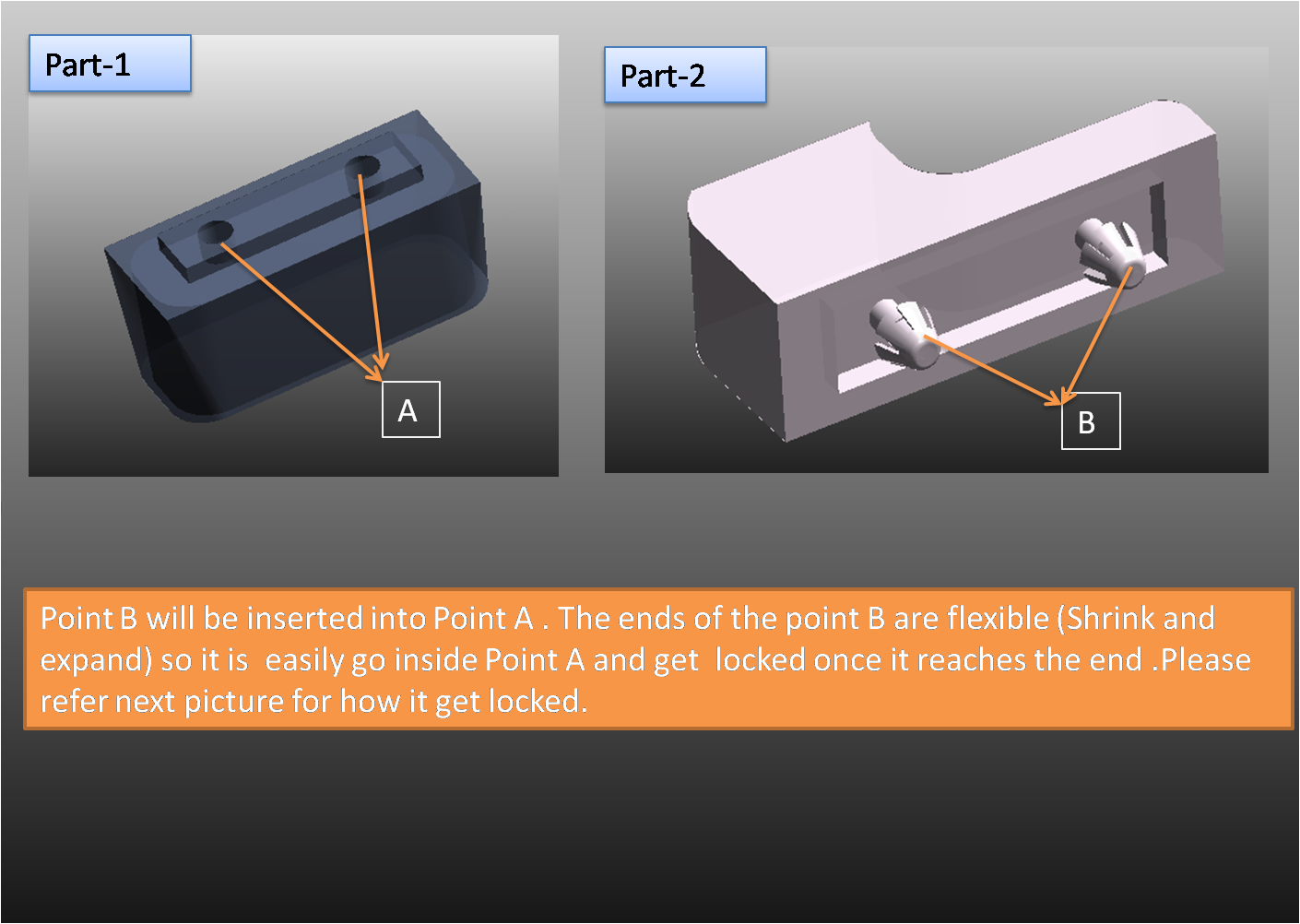

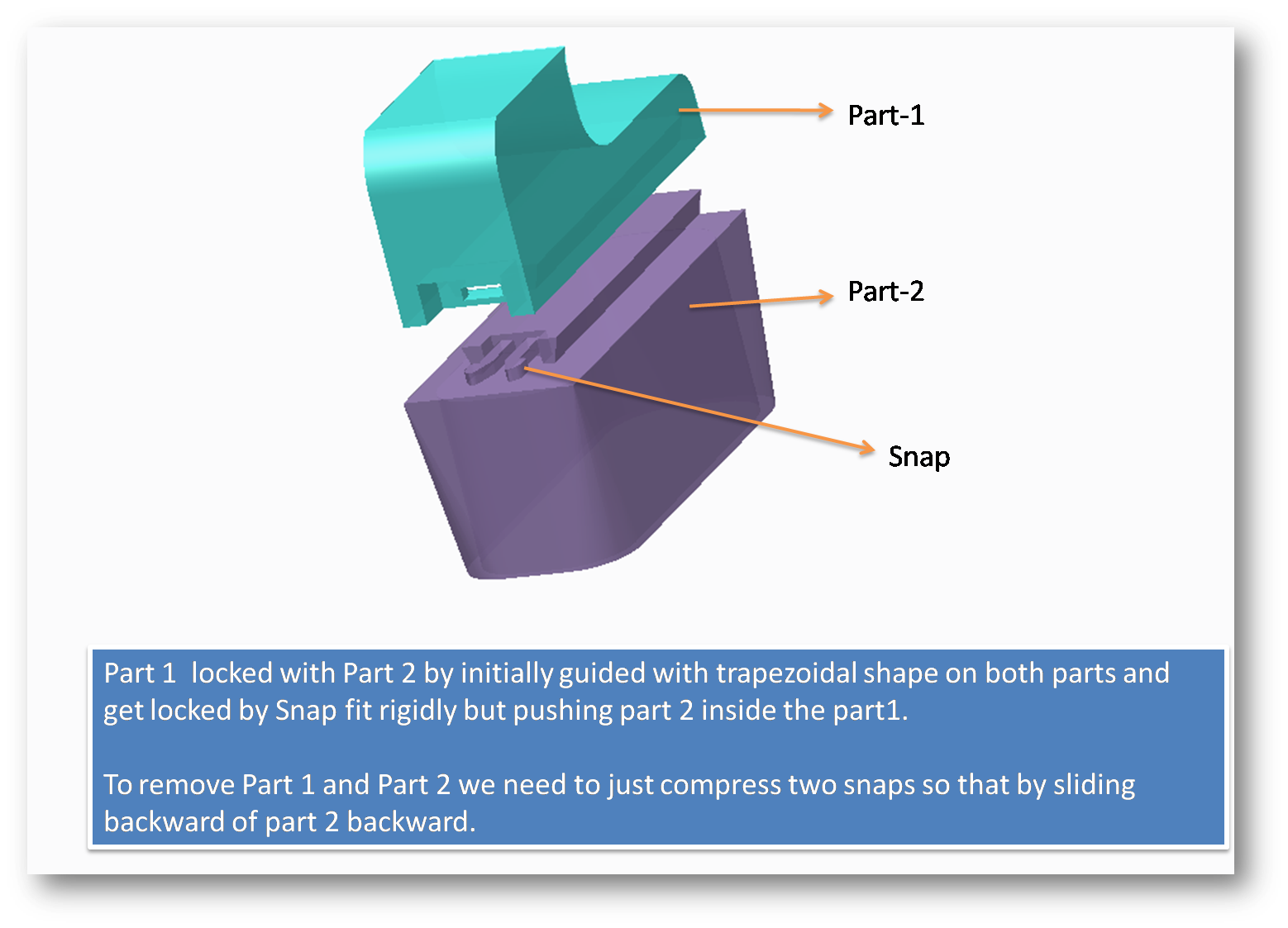

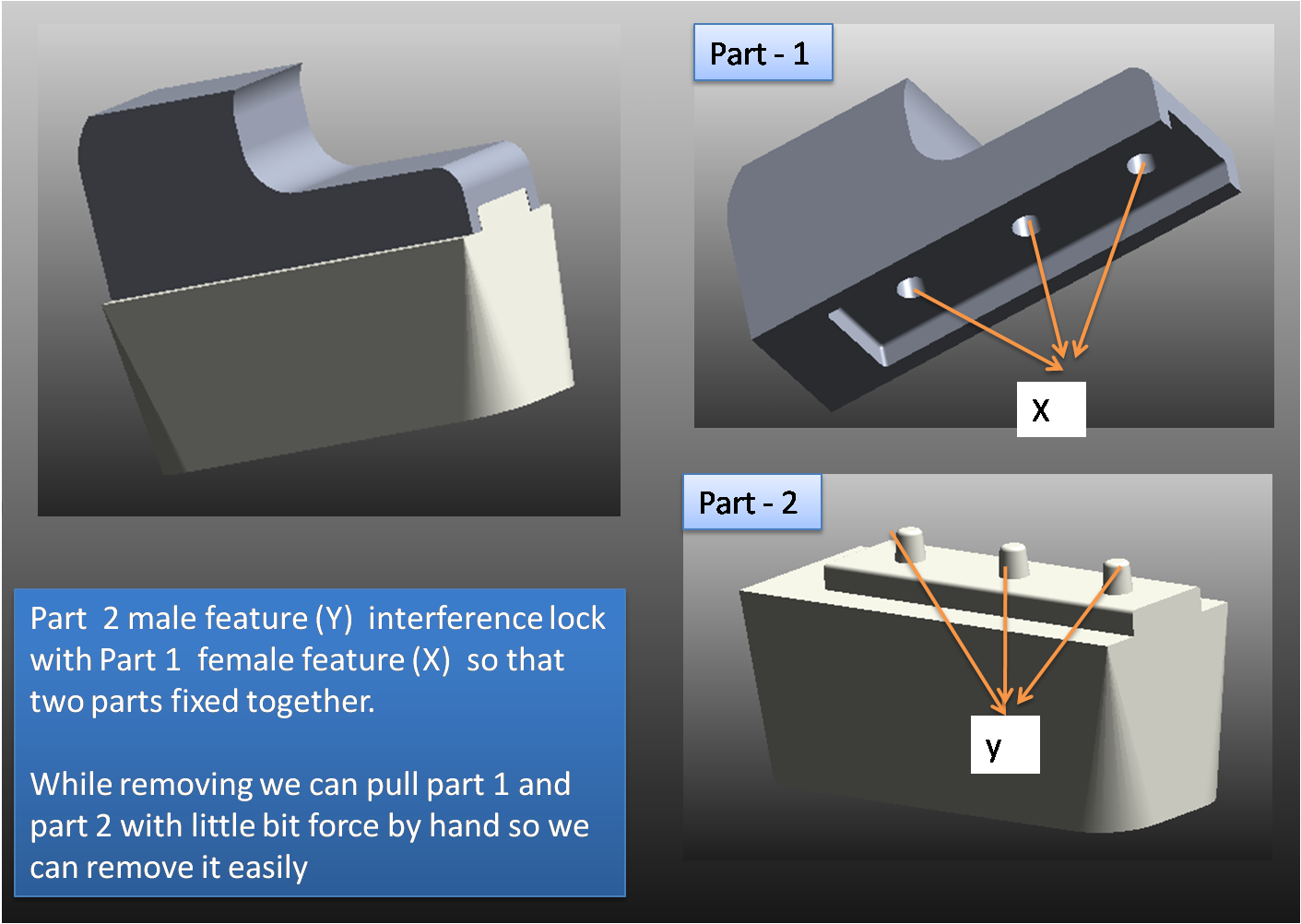

#11locking_mechanism_consumer_product_concept-1.stpbyKarthikeyan Arumugam
Download Files
Dec 15, 2017 7:48
#8locking_mechanism_consumer_product_concept-1.stpbyKarthikeyan Arumugam
Declined
Dec 13, 2017 15:23
Discussion

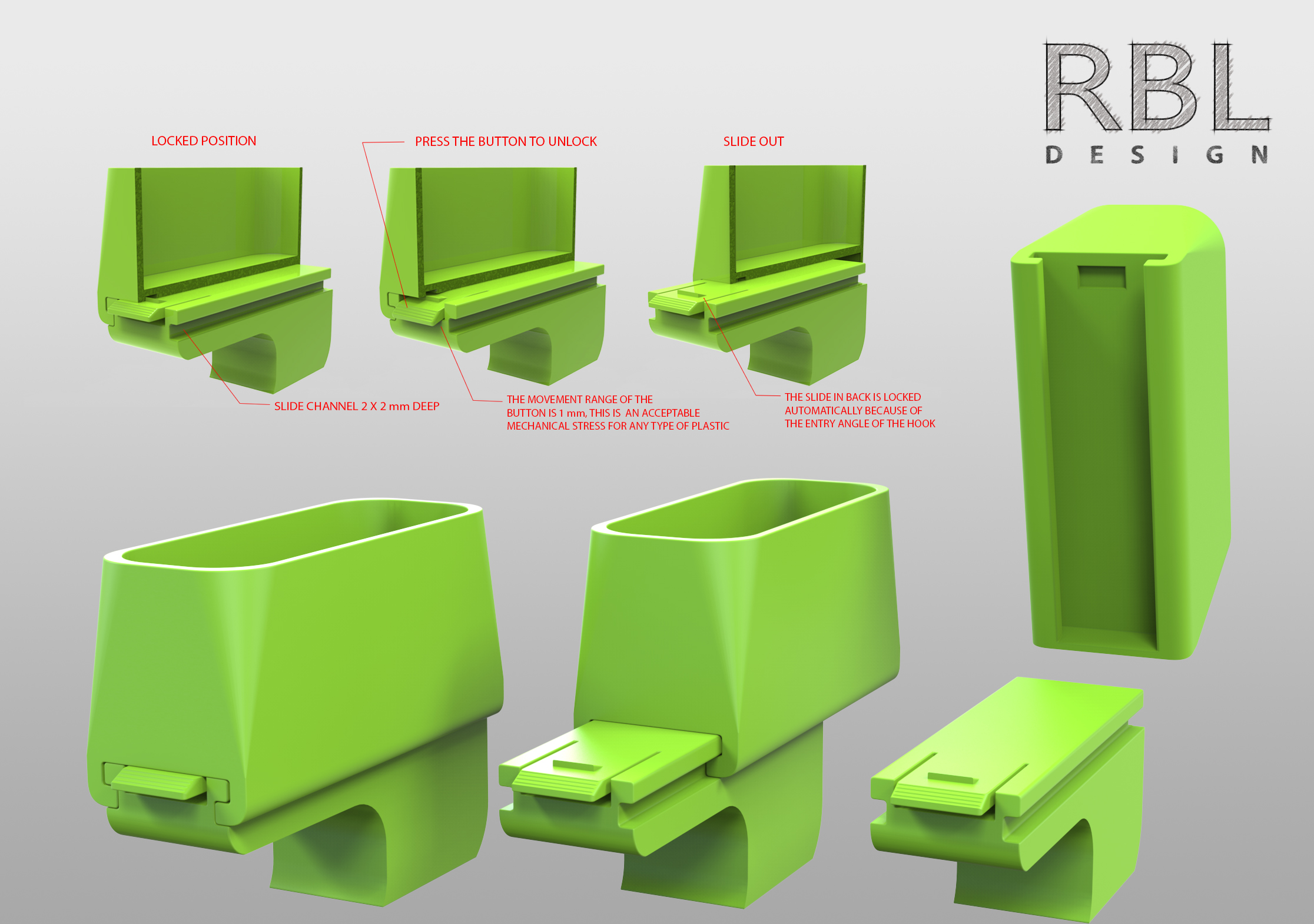

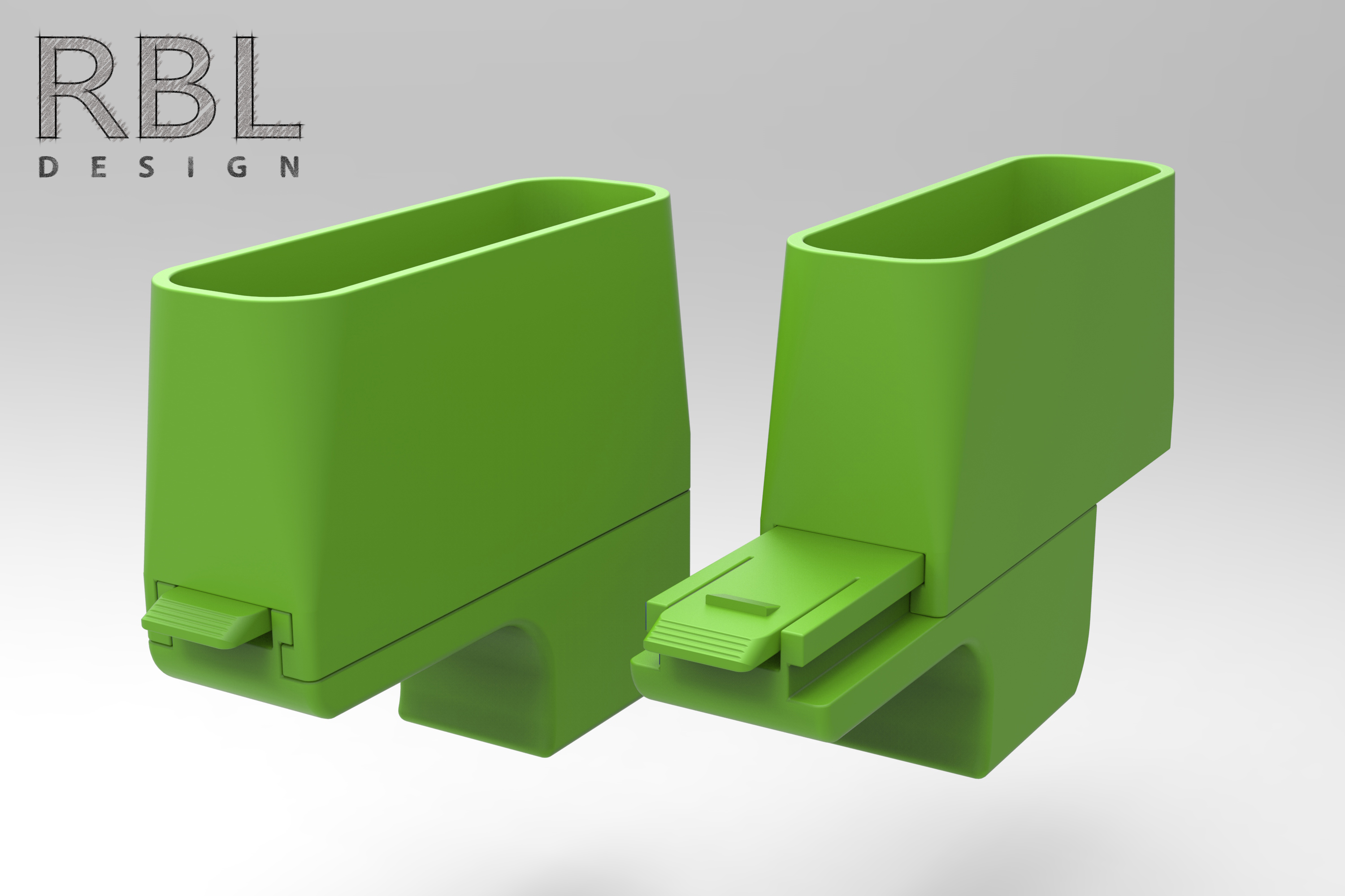

Howdy, Everyone! We would like to thank each of y'all for your work in helping us to design the best possible locking mechanism for our product! There were some incredible designs that really were innovative, minimalistic, and simplistic. We would like to congratulate RBL Designs on being chosen as the winner and for his help along the way!
Thanks again and be on the lookout for future contests from us!
Landon and John
1310 Ventures
Thanks again and be on the lookout for future contests from us!
Landon and John
1310 Ventures
Wed, 27 Dec 2017 11:56:58 +0000
So you want to design an attaching system to join different brush heads to a common handle. Also could you please tell if the brush+handle device will be manually operated or by a machine. Also tell what are you going to apply with the brush, whether a powder/oil/paint etc. Thank you.
Designer
you left a space between the handle and your locking mechanism
must this area be free?
must this area be free?
Buyer
Yes The pieces will need to be locked and unlocked multiple times per day
Buyer
Yes it will be injection molded
Designer
Is it plastic injected part?
Designer
does it have a lot of going in and out?
or you want to make the part in its place for a long time or for product life
or you want to make the part in its place for a long time or for product life
Buyer
How does the head detach once it's been Locked?
Buyer
Howdy guys,
So we do not have a hard number or unit for the force applied that it needs to withstand. With that being said, this is a paint brush head, so think of the force that is applied to a paintbrush while you are holding it at an angle. We want it to obviously be able to withstand that force with possibly a safety factor of around 3 or 4, just to ensure that there is no possible way whatsoever that the brush will accidentally pop out of place while painting. Please let us know if you have any other questions. Thanks!
So we do not have a hard number or unit for the force applied that it needs to withstand. With that being said, this is a paint brush head, so think of the force that is applied to a paintbrush while you are holding it at an angle. We want it to obviously be able to withstand that force with possibly a safety factor of around 3 or 4, just to ensure that there is no possible way whatsoever that the brush will accidentally pop out of place while painting. Please let us know if you have any other questions. Thanks!
Tue, 12 Dec 2017 05:39:26 +0000
It would also be most helpful to attach a basic sketch of the forces directions. There are to be 2 things to consider, the force required to attach and disconnect the 2 pieces together, but also the eventual force or stress when using the assembled tool. We can design an attachment that fits the first set of force but that might not be appropriate for the second set of forces/stress when the tool is being used. We also need that to consider mechanical clearance between the 2 parts. Thanks.
星期一,12月11日2017 23:26:37 +0000
It would be really helpful if you attached a similar product to the one you want. just so we don't get lost.
Buyer
Howdy All,
The product is a painting tool and will be made of injection molded plastic, so the forces shouldn't be that great. Honestly, I'm not completely sure what they'll be, but lets just say that its somewhere around 5-7 pounds at its maximin that will be trying to force the pieces apart.I'm working on verifying payment. Sorry for the holdup on that.
Thanks!
The product is a painting tool and will be made of injection molded plastic, so the forces shouldn't be that great. Honestly, I'm not completely sure what they'll be, but lets just say that its somewhere around 5-7 pounds at its maximin that will be trying to force the pieces apart.I'm working on verifying payment. Sorry for the holdup on that.
Thanks!
Designer
But, as optibild said we need its application and forces involved to solve it better.
Designer
Cool project. I will participate.
Designer
What is the force applied in the lock position that could cause this lock to open unexpectedly?
Designer
Please make the contest prepaid hence will intend to give you right and best solution ...
Sun, 10 Dec 2017 23:54:34 +0000
验证付款。
