Bottle Design

in3D Modeling Designheld byWhitney
Contest Ended, Winner(s) have been selected.
  • Open
  • Choosing Finalist
  • Ended
Description:
My company as of now will sell stainless steel water bottles. The bottle will be designed to keep beverages cold for 24 hours and hot for 12 hours. The purpose of the design will be for me to send it to a company that will mass manufacture the bottle.

The heart portion needs to appear more as if it is coming from the inside out vs it being screwed or glued on to the outside of the bottle as it is pictured. It would also only read 'Jorvine'.
Wants:
——我将评估的细节以及我ts "fit" to be mass manufactured.
- I will not evaluate colors. Use your best judgement.
-The bottle will need to hold no more than 17oz of liquid and able to fit in a standard sized cup holder in your vehicle.
Don't Wants:
- The heart should not extend more than half an inch from the bottle.
- I don't want a string
- I don't want it to read "Jorvine Juice" ( I only want Jorvine)
-
Software:
  1. Blender (newest)
  2. AutoCAD (newest)
  3. Trimble SketchUp (Google)
  4. Maxxon Cinema 4D (Newest)

Entries

= Buyer's Rating

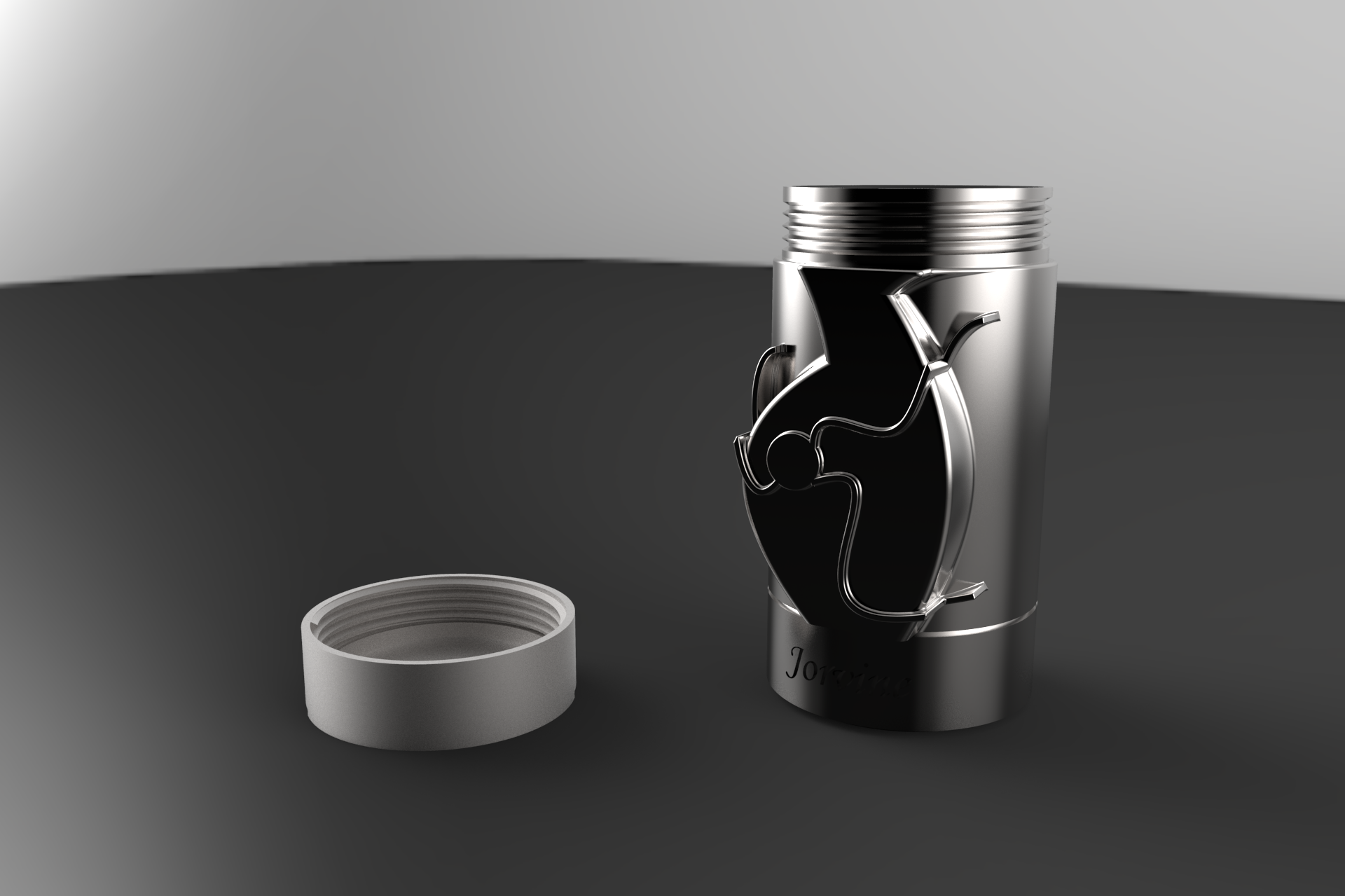

#3Jorvine Bottle ConceptbySophon Designs
Download Files
Jul 30, 2016 19:41

Discussion

Fri, 12 Aug 2016 07:25:08 +0000
what do you mean 500 min

Whitney

Buyer

Mon, 01 Aug 2016 00:42:25 +0000
2.5 inches x 10 inches x 2.5 inches are the (approximate) dimensions.
Thu, 28 Jul 2016 19:45:43 +0000
Hello Whitney,
Can you send more details about your requirements like dimensions, material specifications.
And UG-NX .xt file and AutoCAD .dwg is okay this?

Whitney

Buyer

Sun, 24 Jul 2016 03:20:17 +0000
Any software is acceptable @alexCADEngineering.
Sun, 24 Jul 2016 03:10:31 +0000
Can we use any engineering software we want for the design? (except those listed)

Whitney

Buyer

Sat, 23 Jul 2016 16:35:47 +0000
Abbasi 3 d2022足球世界杯预选赛时间-services和CAD的极客,我欣赏你taking a look. I understand your time and expertise if very valuable. Thank you.
N'Gineer and ProjectZ, I have sent you messages.
Sat, 23 Jul 2016 08:33:41 +0000
Is solidworks 3d design acceptable?
Sat, 23 Jul 2016 06:44:26 +0000
I can do this. Need more info what should the inner diameter be? I assume this is like a sleeve or tube that a thermos fits inside. Since you will need a thermos style bottle to keep things hot or cold like this. You don't mention material. I assume plastic? Metal wont form well to this shape unless it is stamped and then rolled into a tube. Expensive.
Fri, 22 Jul 2016 23:30:32 +0000
Yup the heart part is complex 400 or 500 min Pass again "payment pending"
Fri, 22 Jul 2016 22:20:20 +0000
200 is too less. min. is 400
