Canadabs Beaver Box
inGeneral Designheld byCanadabsLast seen:
Contest Ended, Winner(s) have been selected.
-
Open
-
Choosing Finalist
-
Ended
Description:

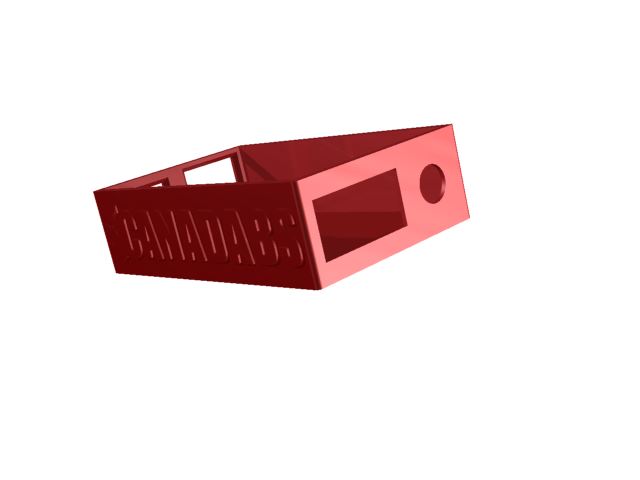

An electronics box with 3D design.I have attached photos of a design i currently have but would like to add 3dimension to the beaver, As you can see in the photo it is only 2D and change the access cover to be the top of the box oppose to bottom to allow for easier printing.
Wants:
BOX 145mmx90mmx40mm4mm thick walls,
Make wall 2mm around Holes, for componats to snap in place.
Hole A 45mm x 23.2mm
Hole B 16mm
Hole C 21.7mm x 29.7mm
Hole D 31.3 mm x 27mm
Don't Wants:
Keep design material volume to a minimum as this will be a production print.
Company Logo:
Yes
Software:
- AutoCAD
- Autodesk Maya
- CADWorx
Additional Information
Any Software that will result in STL file is acceptable, perhaps blender would work wellBeaver Image is very similar to that of Canadian 5cent Nickel
Prepaid PrizeEntries
Discussion

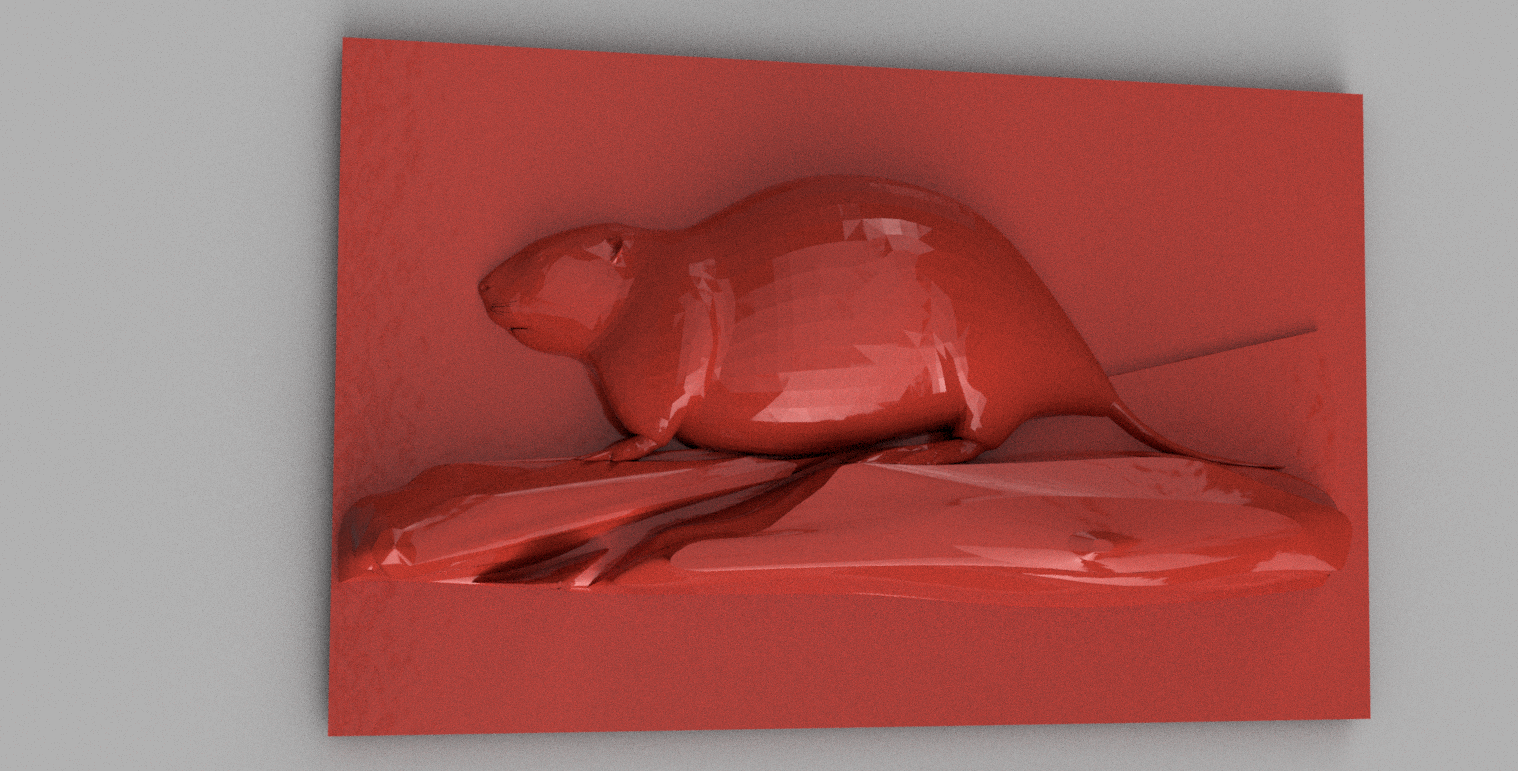

To all designers, the beaver must look organic. I do not need a inlay or cut out of the beavers outline. I need the beaver to look authentic. Please have a look at the canadian 5 cent coin and see how there is texture to the beaver.
There needs to be organic 3rd dimension to the beaver.
edit beaver please to resemble better
here is a photo of the canadian 5 cent coin.
http://www.calgarycoin.com/modern/can5cen19.jpg
http://www.calgarycoin.com/modern/can5cen19.jpg

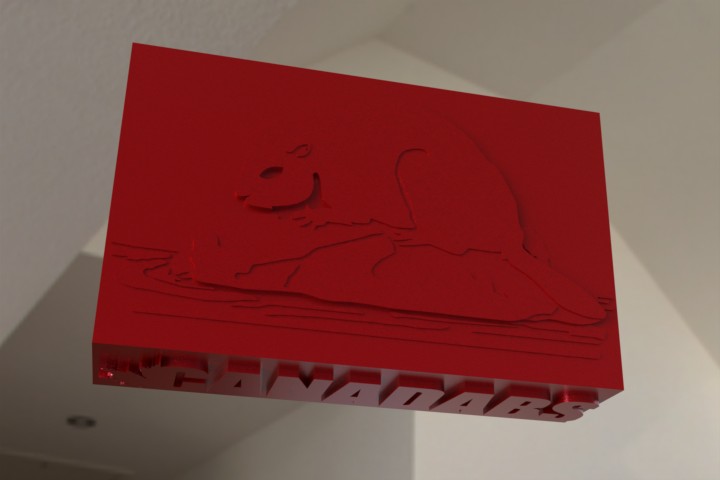

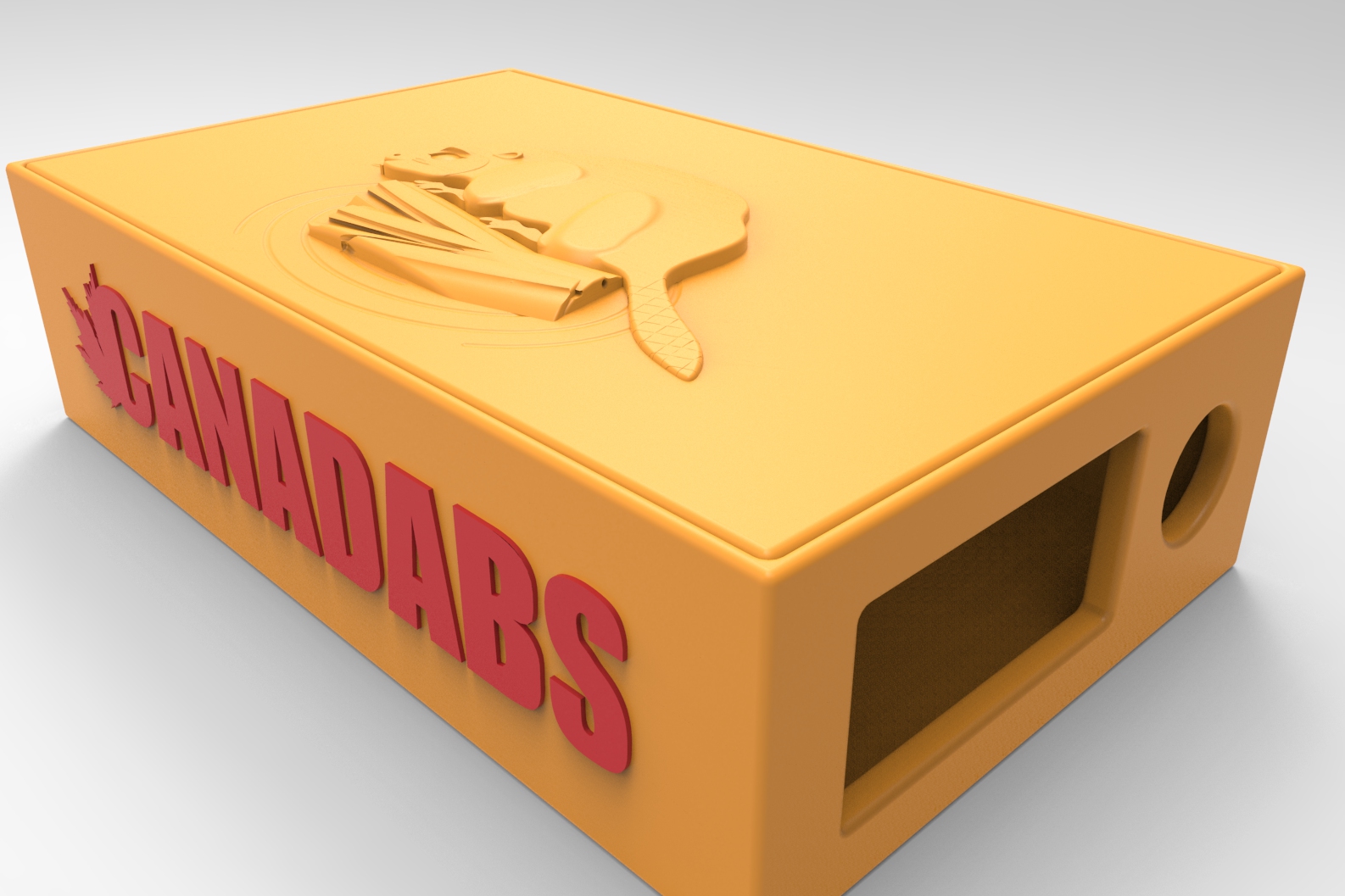

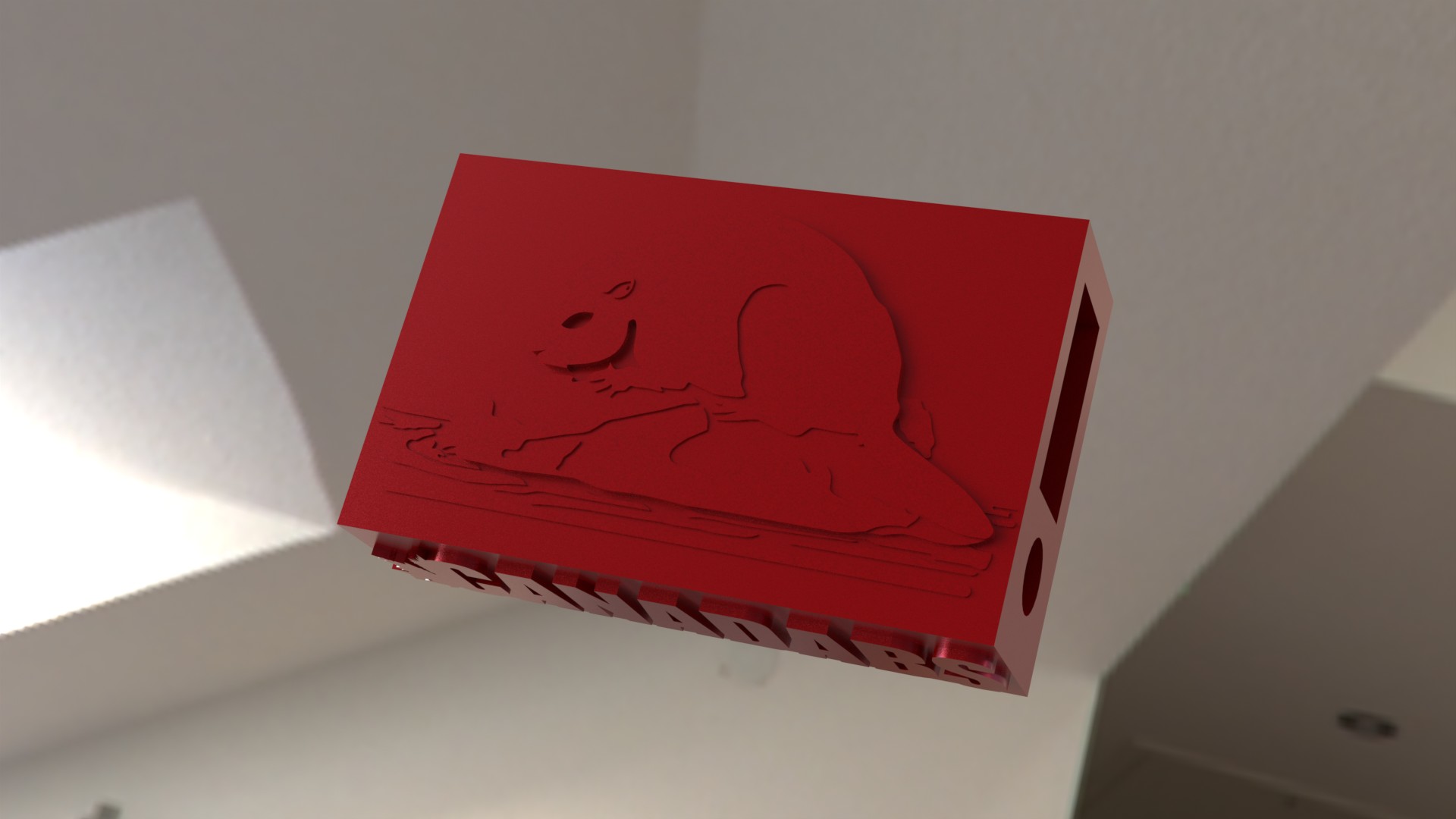

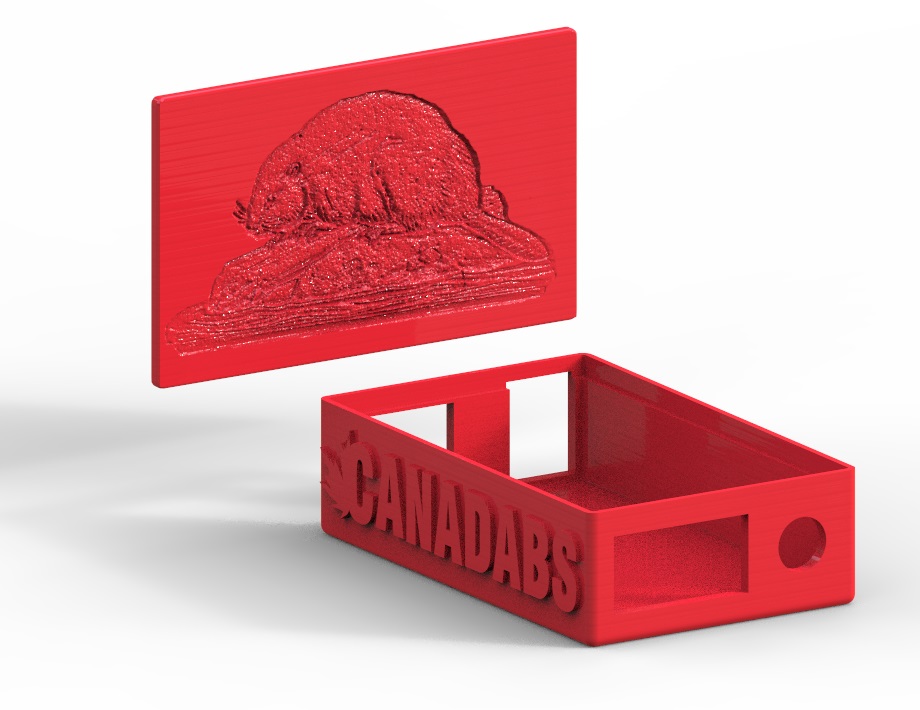

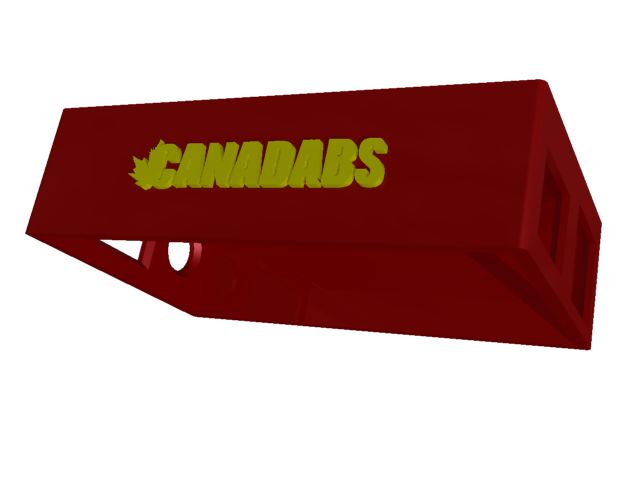

My entrie Design fixed sir and attached STL files.
Any program that will result in STL file will work
sketch dimensions are wrong,why written BOX 145mmx90mmx40mm in description
Its requiere any modification let me know.
pl. confirm on box dimensions BOX 145mmx90mmx40mm in the given description or else in the pdf page it is 10 times 1450x900x400 mm. pl. confirm
In your brief you have dimensions: BOX 145mmx90mmx40mm, but in your sketch PDF file they are: 1450 mm x 900mm x 400mm.
Which are the correct one ?
Which are the correct one ?
With step iges files of any other software will it be acceptable or not bcoz I am working on catia it can be easily import to any other software. pl. confirm.
Dear Canada's, I will try to be able to do 3D design using the software 3d max. Thanks
Would you accept any iges or step files?
Just because I havev none of those software and I'm willing to do the project
Just because I havev none of those software and I'm willing to do the project
Yes Solidworks will do
Would Solidworks do? I'd be happy to provide STI if you want.
